1" x .080" Somenor welded tube reducing mill

-Mill Capacity
Wall Thickness Range: 0.6mm (0.023) - 2mm (0.078).
Line Speed : 35 to 100 m/min.
Tube O.D : 8mm (.315") - 32mm (1.25")
Tube : 8 meter
Shaft Diameter : 40mm (1.6")

Complete Mill With:

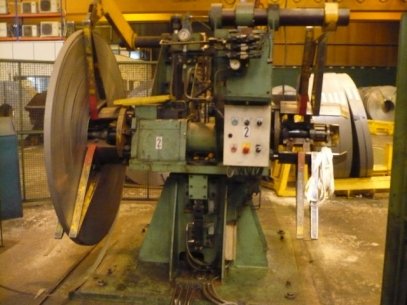

-Double End Uncoiler (L.A.S.A)
Coil Weight: 9,000lbs

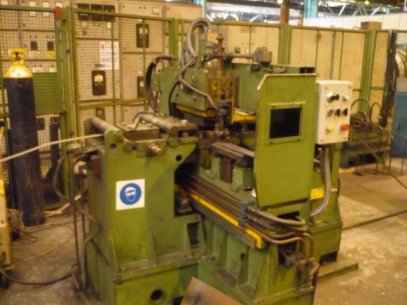

-Shear End Welder (OTO Mills)

-Kent Floop Vertical Accumulator

-Somenor Tube Mill

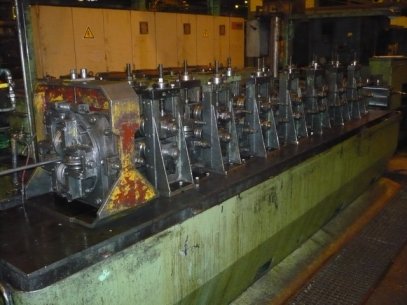

Forming Mill
40mm (1.6") Shaft Diameter
6 Forming Stands
5 Side guides
160mm (6.3") Roll Space
295mm (11.6") Vertical Separation
2 Roll Welding Box
OD Scarfing Unit
Guiding rolls
35HP DC Drive

-Welding Unit Marca SEF
120 KW Welding Power
320 Hz Frequency
Tube Type

-10' Cooling Trough

-Sizing
7 Sizing Stands
7 Idler Side Guide
Individual Driven and Controls by 7.5 HP DC Motor

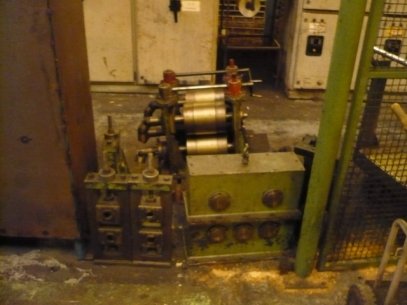

-Double Sided Turks Head

CutOff
OTO Mills Cold Saw

Controls Updated by ELVA, 1997

Tooling Available
-Welded Tube Sizes:
12,7mm
13,0mm
14mm
15mm
15,8mm
16,0mm
17,0mm
-Finished Reducuction Sizes
9,25mm
9,35mm
9,75mm
10mm
12mm
