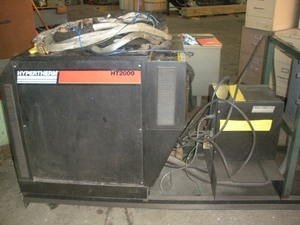

Hypertherm HT2000
Serial #: 2000-001078
Asset #: HYP-150911-700286
These units came off of Whitney Plasma Punch Presses. Each unit is equipped with torch, gas console, and remote high frequency console.
Specifications:
Power Supply:
Maximum OCV: 280 VDC
Output Current: 40 to 200 amps
Output Voltage: 150 VDC
Duty Cycle Rating: 100% up to 30kW
Ambient Temperatures/Duty Cycle: Power supplies will operate between +14o and 104oF. Power supplies operated in an ambient temperature above 86oF may show some decrease in duty cycle.
Input Power: 240/480 VAC, 3PH, 60 Hz, 90/45 amps
Dimensions and Weight:
Width: 28 ¼”
Height: 35 ½”
Depth: 41 ¼”
Weight: 780 pounds
Cooling: Forced Air (Class F)
Torch Coolant Tank Capacity: 2.9 gallons
Machine Torch:
Maximum cutting thickness: 2 inch
Maximum current at 100% duty cycle: 200 amps
Water coolant flow rate: 0.8 gpm
Weight: 2 ½ pounds
We currently have 7 of these units in stock.
