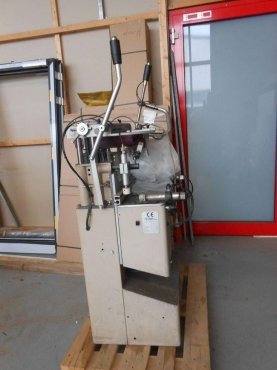

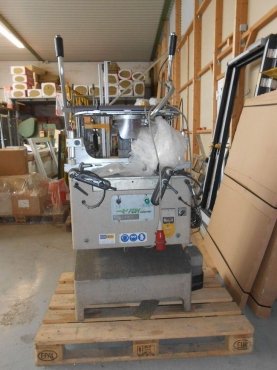

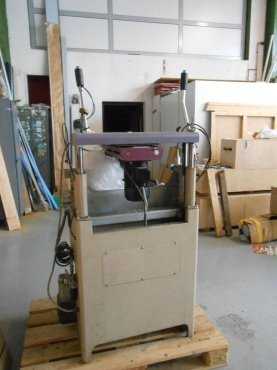

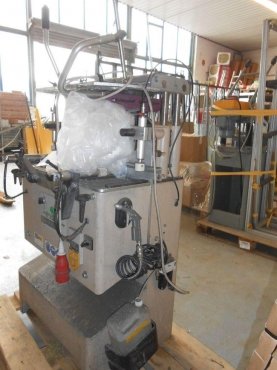

Electropneumatic Copying Technical description spindle with two speeds (6.000/11.800/min-1) Vertical and horizontal clamps low pressure safety device (protection f the machine operator) axis shift by shift lever, the machine allows you to edit or copy templates with mechanical stops. The copy template is located at the head end in an ergonomically favorable position in the visual range of the machine operator Oelnebelsprüheinrichtung for the tool Pneumatic tracer Four used and ground guideways, adjustment on ball screws, and a particularly rigid milling unit, provide precise and smooth handling ability and steel profiles with the appropriate tool edit field recording cutter shaft: from 8 to 10 mm (with the appropriate collet) Quick-clamping device for recording rapid tool change spindle 2/4-poliger Drehstrommmotor, 0.55 / 0.37 kW - 2830/1405 min-1, EUR Voltage 230/400V - 50Hz, 275/480V 60 Hz). Maintenance unit with air filter & water separator operating pressure: 7 bar Air consumption / coverage 4 Nl
