Machine Reference nr. : 337
COMBINED DRAWING MACHINE SCHUMAG KZRP-2B
Specifications:
Manufacturer SCHUMAG Ag, AACHEN, GERMANY
Year of manufacture 1971
Model KZRP-2B
Range
- Rounds: Ø 10 – 28 mm.
- Hexagons: Ø 10 – 25 mm. -
- Squares: 10 – 25 mm.
- Flats: diagonal 38 mm.
Drawing force 10 Tons.
Bars length Up to 6 mt.
Speed 7.5 / 15 / 20 / 30 / 40 / 60 mt./min.
RIPO motor 46/30 kW
Drawing bench motor 160 kW - 1738 – 1482 rpm
Tension 380 V. 50 Hz.
COMPOSITION OF THE LINE

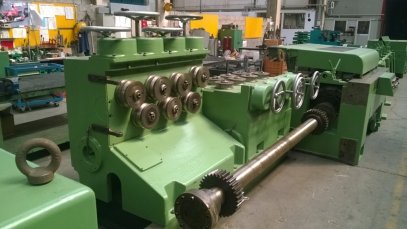

H + V pre-straightener

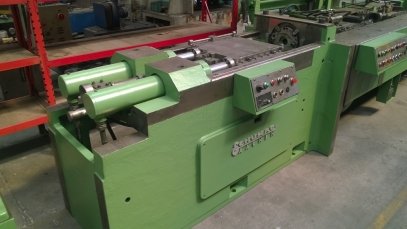

Hydraulic push pointer

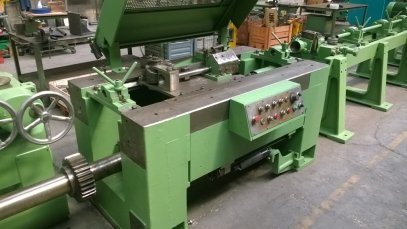

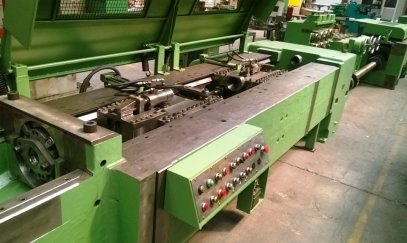

Two carriages drawing bench

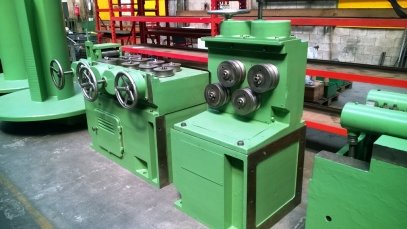

Horizontal and vertical straighteners
Flying shear (SCHUMATRONIC length synchronizing)

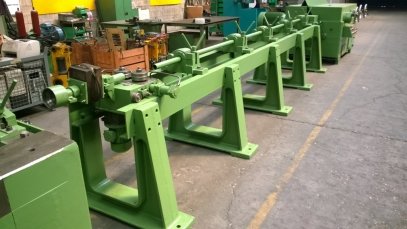

Conveying trough

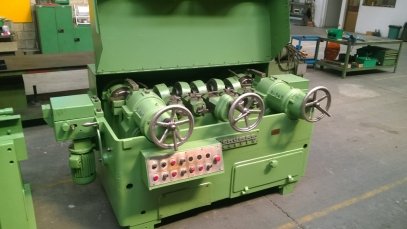

5 nozzles RIPO polishing machine
Original electric equipment
Hydraulic equipment
Spare parts, manual and drawings available
