Machine Reference nr.: 273
TRIPLE PULL DRAW BENCH 100 T.
Specifications:
Manufacturer ZTS – Czech Republic
Model 100
Year 1982
Working range Ø 40 – 100 mm.
Drawing force 100 Tons.
Bars length 8,5 mt.
Drawing speed 4 – 45 mt./min.
Speed of the roller conveyor 60 mt./min.
Carriage backward speed 60 mt./min.
Loading table capacity 10 Tons.
Motor power 550 kW d.c.
Total weight of the supply 90 tons. approx.
Tension 400 V. 50 Hz.
COMPOSITION OF THE LINE
Loading bench + transfer table + sorting device

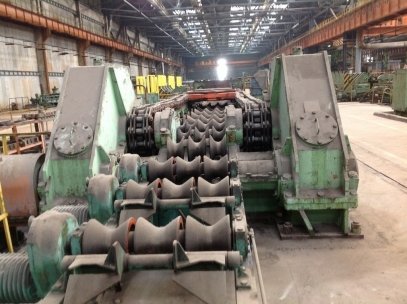

Feeding roller conveyor

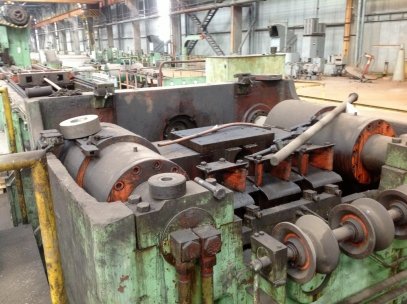

Push pointer

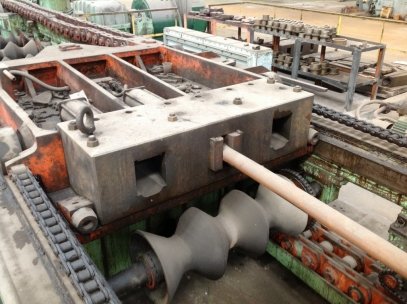

Triple pull carriage

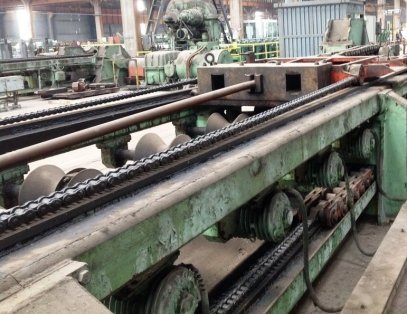

Pulling chain + Outlet roller conveyor

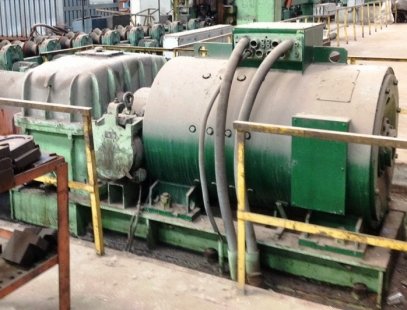

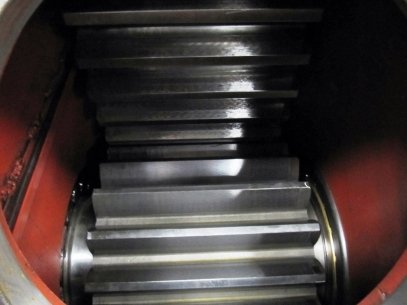

Main motor + gear reducer
Hydraulic equipment
Lubricating system
Original electric equipment
Manuals and drawings

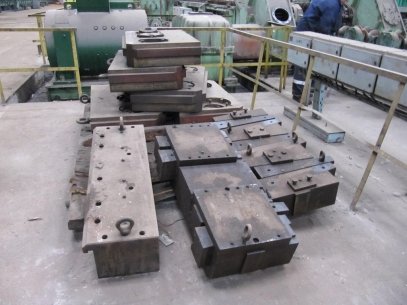

Spare parts
