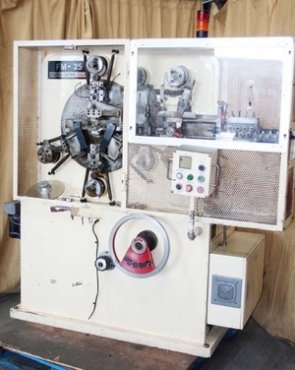

Okuna Model FM-25 Multi-Slide Press Wire Spring Forming Machine

Okuna Model FM-25 Multi-Slide Press Wire Spring Forming Machine

S/N: 01710991 New: 1971

EQUIPPED WITH:
(4) slides. 7-roll horizontal/wire straightener. 7-roll vertical wire straighteners. Controls for run, inch, auto-run. Part counter. Variable speed control.

SPECIFICATIONS:
Wire capacity: 0.4-2.5mm
Max. wire feed length: 135mm
Punching press power: 1.5t
Thrust force of slide: 1.0t
Production speed: 40-160pcs/min
Main motor: 1.5kw 4p
Machine dimension: 1500 (w) x 870 (l) x 1665 (h)
