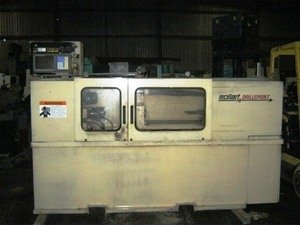

(2) 5/8" X 27" MOLLART MODEL A175 CNC TWIN SPINDLE GUN DRILLS
SERIAL NUMBER 173-0492 & 175-0492 NEW 1992
GENERAL SPECIFICATIONS:
Powermate Control GE Fanuc
Range .08 -.750
Hole depth 27"
Max. parts length 40"
AC spindle motor 6.5 HP
Spindle Nose bore, Collet type 25mm
Spindle center height from table 200mm
Drill feed range 0-1000mm/min
Rapid traverse 10mm/min
High pressure coolant system
Micron filtration 20
Spindle Max. 12,000 RPM
(2) 5/8" X 27" MOLLART MODEL A175 CNC TWIN SPINDLE GUN DRILLS
SERIAL NUMBER 173-0492 & 175-0492 NEW 1992
GENERAL SPECIFICATIONS:
Powermate Control GE Fanuc
Range .08 -.625
Hole depth 27"
Max. parts length 33"
AC spindle motor 6.5 HP
Spindle Nose bore, Collet type 25mm
Spindle center height from table 200mm
Drill feed range 0-1000mm/min
Rapid traverse 10mm/min
High pressure coolant system
Micron filtration 20
Spindle Max. 6,000 RPM
EQUIPPED WITH:

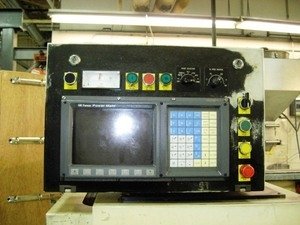

GE Fanuc Powermater iD CNC Controls

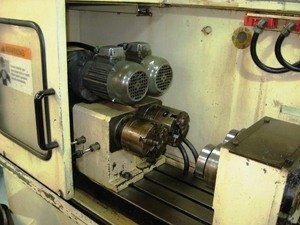

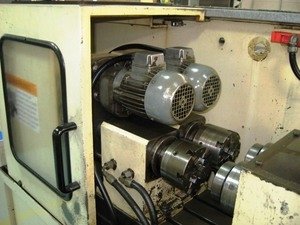

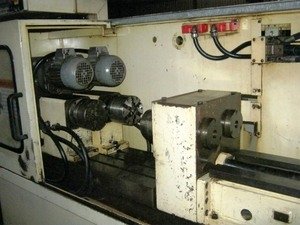

(2) Counter rotating work holding tailstock spindles w/6 Jaw chucks, 32mm Bore, 100 RPM, Max. diameter 70mm
Totally Enclosed Guarding
RS 232 Port
Spindle load meter
High Pressure Coolant pump
Coolant filtration
