Description:

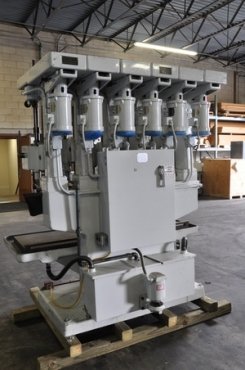

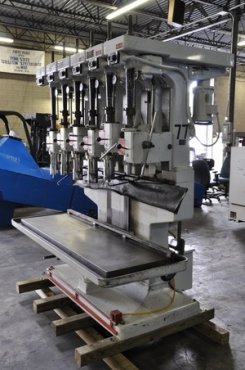

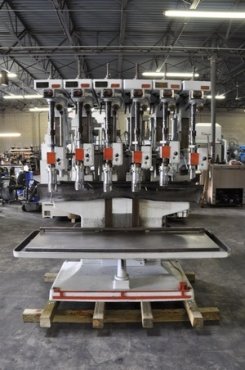

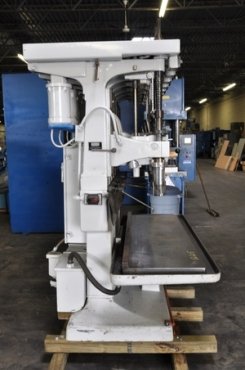

24" ALLEN 6-SPINDLE DRILL PRESS
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $4,950.00
Stock # 12215
Serial # VDWH35123 New 1978
Table Working Surface: 21" x 65-5/8"
Table Size Including Coolant Trough: 27-1/2" x 73"
Throat Depth: 12" Back to Table Vertical Ways
Throat Depth: 13-1/2" Back to Machine Face
Table Has Approx. 16" of Table Vertical Travel Via Hand Crank
Maximum Height Under Spindles: 30"
Minimum Distance Table to Spindle: 6"

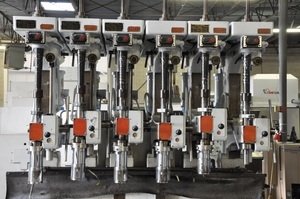

10" Center to Center Between Spindles
All Spindles Have Power Feed
5" Spindle Travel with Auto Feed Kick-Out & Adjustable Feed Depth Stop
#2 Morse Taper in Each Spindle
Each Spindle Has (9) Spindle Speeds: 500 to 4800 RPM Via Step Pulleys
Each Spindle Has (3) Power Feed Rates: .003, .006 & .010 TPR
Spindle Carriers Have 8-1/4" of Manual Vertical Travel
Each Spindle Has a Counterweight
(5) Spindles Have Jacobs 1/2" Capacity Drill Chucks
(5) Spindles Have Rockford Sliding Chuck Guards
Coolant Pump & Piping
1/4 HP Gusher Coolant Pump, 3 Phase, 60 Cycle, 230-460 Volts
Each Drill Spindle has 1/2 HP Motor, 3 Phase, 60 Cycle, 208-230-460 Volts
Presently Wired 220 Volts
Machine Overall Dimensions: 73" L x 50" W x 87" H
