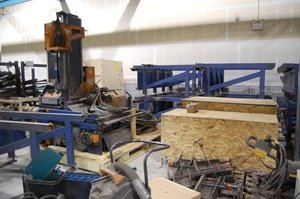

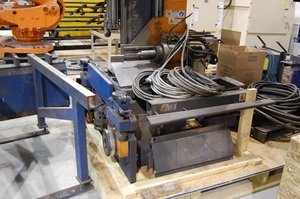

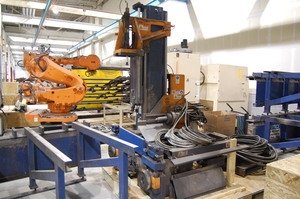

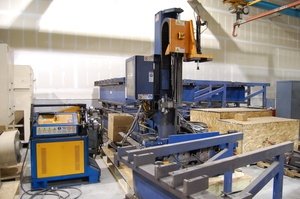

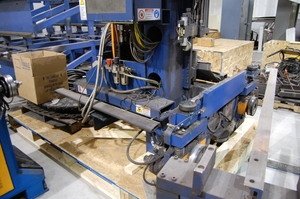

PEDDINGHAUS OCEAN AVENGER II CNC BEAM DRILL
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $97,500.00
Stock # 12021-P
Serial # 50133 New 2007 Model # MDL-1000/1B
Maximum Machining Height: 39.3"
Maximum Thickness: 6"
Drill Head Travel: 60'
X-Axis Travel Speed: 120 FPM
Y-Axis Travel Speed: 120 FPM
Web Probe Stroke: 10"
(1) Horizontal Drill Spindle
#4 Morse Taper in Spindle
Spindle Travel: 13"
13-1/2 HP Spindle Drive Motor
Drill Spindle Rapid Advance Speed: 192 IPM
Drill Spindle Variable Feed Rate: 2 to 10 IPM
Variable Spindle Speed: 200 to 850 RPM (Programmable)
Normal Drilling Diameter Range: 5/16" to 1-9/16"
Coolant Thru the Spindle
Laser Marker
Siemens CNC Control
65' of Roller Table
20 HP Hydraulic System, 3 Phase, 60 Cycle, 440 Volts
Full Set of Machine Manuals
(65) Ocean Machine Penetrator Cobalt Drill Bits from 5/8" to 1 3/4"
