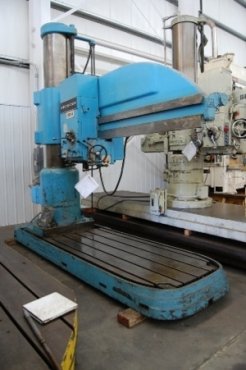

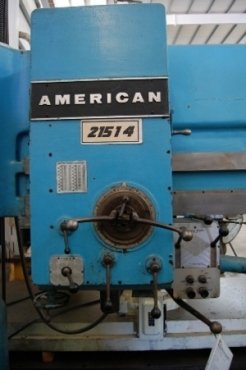

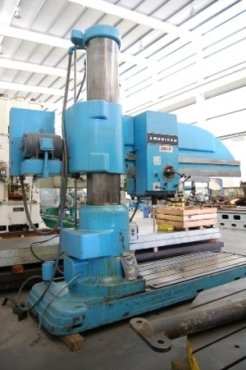

8' X 19" AMERICAN RADIAL DRILL
PRICE: F.O.B. OUR WAREHOUSE, YORK, PA



Stock # 01086

Serial # 77106/63 New 1963

(32) Spindle Speeds: 20 to 1600 RPM

(16) Spindle Feeds: .003 to .125 TPR

Thread Leads: 8, 11.5, 14 & 18 TPI

Spindle Taper: #6 Morse

Spindle Diameter: 3-1/4"

Spindle Travel: 18"

Minimum Distance Spindle to Base: 28"

Maximum Distance Spindle to Base: 78"

Base: 50" W x 104" L with (5) 1-1/16" W T-Slots on 9" Centers



EQUIPPED WITH:

Rapid Traverse to Head

Power Elevation to Arm

Power Clamping to Arm & Manual Clamping To Head on Arm

30 HP Main Motor, Wired 3 Phase, 60 Cycle, 440 Volts

1/2 HP Gusher Coolant Pump, Wired 3 Phase, 60 Cycle, 220/440 Volts

Overall Machine Dimensions: 172" L x 62" W x 155" H

This Machine is in Working Condition
