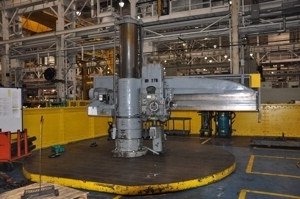

8' X 19" CARLTON RADIAL ARM DRILL
Loaded on Truck, Our Warehouse, York, PA
Stock # 08415
Serial # 4A-4646 New 1963 Model # 4A
Completely Remanufactured By Natco Carlton in Sept. 1999
Spindle Speeds: 15 to 1500 RPM
Spindle Travel: 20"
Spindle Taper: #6 Morse
Spindle Diameter: 4"
Spindle Feeds: .004 to .125 TPR
Tapping Leads: 8, 11-1/2, 14 and 18 TPI
Drills to the Center of Circle: 16'
Distance Spindle to Base: 14-1/2" Min. to 78" Max.
Spindle Radius to Center of Column: 27" Min. to 109-3/4" Max.
Face of Column to Center of Spindle: 13-1/4" Min. to 96" Max.
Traverse of Arm on Column: 43-1/2"
Traverse of Head on Arm: 82-3/4"
Base Working Surface, Non Standard: 193" Dia. x 6-1/4" High with T-Slots (2 Pieces)
Power Clamping to Arm & Head
Power Arm Elevation
Rapid Traverse to Head on Arm
Built In Machine Work Light
Trabon Auto Lubrication System
Electrical Disonnect Box
20 HP Motor, Wired 3 Phase, 60 Cycle, 230-460 Volts
Overall Dimensions:
Drill Has Been Relocated on 1 Base Section for Stable Shipping
Machine with 1 Base Section: 97" Wide x 205" Long x 147" High
Additional Base Section: 93" Wide x 205" Long x 5-1/2" Thick
Total Weight All Items: 51,250 Lbs. (2 Trucks Required)
