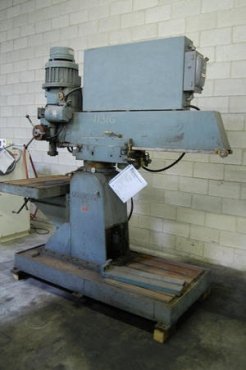

4' X 12" JOHANSSON RADIAL DRILL
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $7,950.00
Stock # 11316
Serial # 52774 Model # 4' x 5 HP
Column Diameter: 12"
Max. Work Piece Diameter at Table and Base: 8'
Min. Spindle to Face of Column at Table and Base: 7"
Max. Spindle to Face of Column at Table and Base: 48"
Min. Spindle Radius: 18"
Max. Spindle Radius: 58"
Horizontal Travel of Head on Ram: 41"
Min. Table to Spindle (Spindle Retracted): 4"
Max. Table to Spindle (Spindle Retracted): 32"
Min. Base to Spindle (Spindle Extended): 32"
Max. Base to Spindle (Spindle Extended): 54"
Table Travel: 16"
Table Working Surface: 26" x 40"
Base Working Surface: 28" x 32"
Base Height: 7"
Spindle Traverse in Head: 10"
Maximum Hole Depth: 22"
Spindle Morse Taper: No. 5
Spindle Quill Diameter: 3-1/2"
Spindle Power Feed (Infinitely Variable): 0 to 12" Per Minute
(16) Spindle Speeds: 60 to 1560 RPM
Drilling Capacity - Cast Iron: 2-1/4"
Drilling Capacity - Mild Steel: 2"
EQUIPPED WITH:
Power Elevation to Ram and Power Clamp
Manual Table Elevation
Coolant
Work Light
5 HP Main Motor, Wired for 3 Phase, 60 Cycle, 460 Volts Only
Overall Size: 90" L-R x 41" F-B x 96" H x 5,000 Lbs.
