Description:

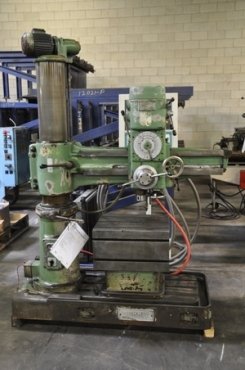

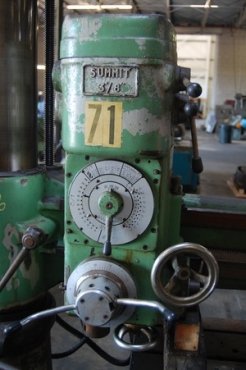

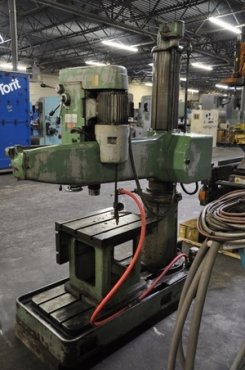

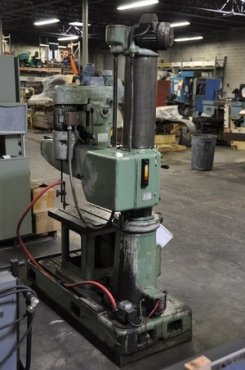

3' X 8" SUMMIT RADIAL ARM DRILL
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $3,950.00
Stock # 12206
Serial # 3433
Drilling Capacity in Mild Steel: 1-9/16"
Distance Spindle Axis to Column: 11-7/8" Min., 40" Max.
Distance Spindle Nose to Base: 9-13/16" Min., 39-3/8" Max.
Spindle Taper: #4 Morse
Spindle Travel: 7"
(12) Spindle Speeds: 40 to 2000 RPM
(3) Spindle Feeds: .004", .008", .012" Thous. Per Revolution
Travel of Head on Arm: 27-9/16"

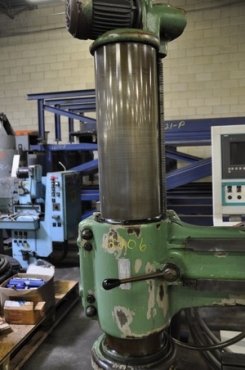

Vertical Travel of Arm on Column: 19-11/16"
Box Table Top: 18" F-B x 21" L-R with (3) T-Slots
Box Table Face: 18" x 12" High with (2) T-Slots
Box Table Height: 19-3/4"
Base Working Area: 31" F-B x 46" L-R with (3) T-Slots
EQUIPPED WITH:
Adjustable Quill Travel Feed Kick Out Stop
Power Elevation of Arm on Column
Manual Clamping of Arm & Head
Hardened & Ground Arm & Column Ways
Plain Box Table
Coolant Pump and Piping
2 HP Main Spindle Motor
3/4 HP Arm Elevation Motor
Wired for 3 Phase, 60 Cycle, 220/440 Volt Operation
Presently Wired for 220 Volts
Overall Size: 61" L-R x 27" F-B x 83" H x Approx. 3,000 Lbs.
