Description:

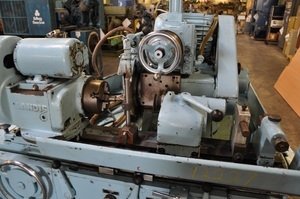

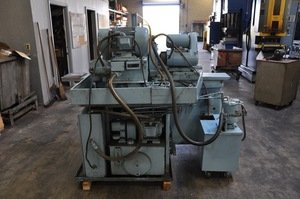

10" X 20" LANDIS UNIVERSAL CYLINDRICAL GRINDER
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $8,950.00
Stock # 12227
Serial # 810-1 Model # 1R
10" Swing Over the Table
Hydraulic Table Traverse, Variable Speed: 2 to 240 IPM
Table Swivels 20° Included Angle, 4' Taper Per Foot
Live Spindle Headstock, (3) Speeds Via Step Pulley
Grinding Wheel Size: 12" Dia. x 1" Wide x 5" Hole
Max. Grinding Wheel Width: 1-1/2"
Auto Infeed & Pick Feed
Spring Loaded Tailstock Quill with #2 Morse Taper
Work Head has #4 Morse Taper
(10) Misc. Centers for Tailstock
(13) Misc. Centers & Morse Taper Reducer Sleeves for Work Head
(2) Wheel Hubs
6" 4-Jaw Chuck for Work Head
(2) Table Mounted Work Supports
1/2 HP Dumore Internal Grinding Attachment with Adapter Plate to
Mount to Wheel Head
Table Mounted Diamond Wheel Dresser
1/2 HP Coolant Tank & Pump, 3 Phase, 60 Cycle, 220-440 Volts
Bijur One Shot Lube
3 HP Wheel Head Motor, 3 Phase, 60 Cycle, 230-460 Volts
1 HP Hydraulic Pump Motor, 3 Phase, 60 Cycle, 220-440 Volts
1/4 HP Wheel Head Infeed Motor, 3 Phase, 60 Cycle, 220-440 Volts
1/4 HP Work Head Motor, 3 Phase, 60 Cycle, 220-440 Volts
Machine Overall Dimensions: 78" L-R x 53" F-B x 61" H
Coolant Tank: 20" L x 14" W x 20" H

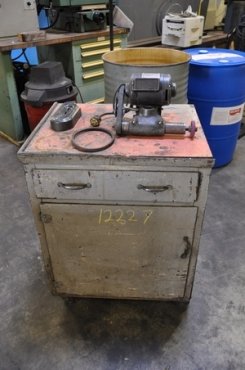

Tooling Cabinet: 27" L x 24" W x 34" H
