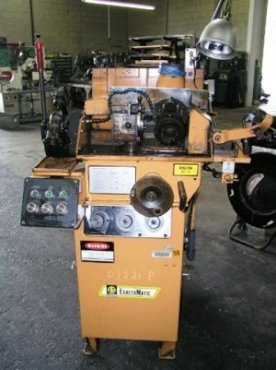

GIDDINGS & LEWIS WINSLOW EXACTAMATIC DRILL GRINDER
PRICE: Loaded on Truck, Our Warehouse, York, PA
Stock # 07221-P
Serial # 940-00473-82 New 1982 Model # HC
This machine is designed to produce conventional, Racon and helical points from 90° to 140° included point angle on all fractional, number, letter size drills from 1/16" thru 1". Up to 1-1/2" with optional equipment (not supplied).
CATALOGUE SPECIFICATIONS:
Drill Diameter Capacity Range: 1/16" to 1-1/2" (With Proper Holders, Not All Supplied)
Drill Diameter Conventional Point: 1/16" to 1-1/2"
Drill Diameter 4-Facet Point: 1/16" to 1.0"
Drill Diameter Helical Point: 1/16" to 1.0"
Drill Diameter Racon Point: 1/16" to 1.0"
Drill Diameter Split Point: 1/16" to 0.5"
Variable Point Angle Degrees Range: 90 to 140 (60 to 180 Deg. Optional, Consult Factory)
Grinding Wheel Size: 12" Diameter x 3/4" Wide x 5" Hole
EQUIPPED WITH:
Inch – Metric Drill Size Ability
For All Standard Right Hand Drills (Left Hand is Optional, Consult Factory)
