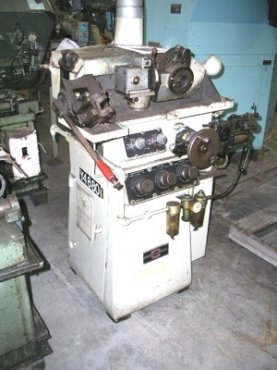

OMARK WINSLOW EXACTAMATIC DRILL GRINDER
Loaded on Truck, Our Warehouse, York, PA

Stock # 05219
Serial # 00401 Model # HC101 New 1968

CATALOGUE SPECIFICATIONS:
Drill Diameter Capacity Range: 1/16" to 1-1/2" (With Proper Holders, Not All Supplied)
Drill Diameter Conventional Point: 1/16" to 1-1/2"
Drill Diameter 4-Facet Point: 1/16" to 1.0"
Drill Diameter Helical Point: 1/16" to 1.0"
Drill Diameter Racon Point: 1/16" to 1.0"
Drill Diameter Split Point: 1/16" to 0.5"
Variable Point Angle Degrees Range: 90 to 140 (60 to 180 Deg. Optional, Consult Factory)
Grinding Wheel Size: 12" Dia. x 3/4" Wide x 5" Hole
EQUIPPED WITH:
Inch – Metric Drill Size Ability
For All Standard Right Hand Drills (Left Hand is Optional, Consult Factory)
For Straight Shank and Tapered Shank Drills
Automatic Grinding Cycle
Drill Bit in Drill Holder Timing Fixture
Air Infeed Attachment
Grinding Wheel Dresser
(13) Standard Drill Holders Up to 1" Capacity
Large Bits Require Solid Type Drill Bushings Bored to Drill Size
(13) Bushing Index Plates with Wood Box (Inch & Metric Sizes)
(3) Wheel Hub
(1) Cam Plate
Built in Flood Type Coolant System
Machine Work Light
1 HP Spindle Motor, Wired for 3 Phase, 60 Cycle, 230/460 Volts
1/4 HP Workhead Motor
Floor Space Required: 4' 2" W x 3' 2" D x 1,100 Lbs.
Some Point Styles & Sizes Require an Optional Kit Not Presently with Machine
