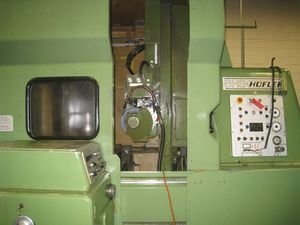

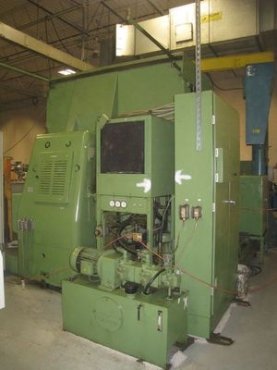

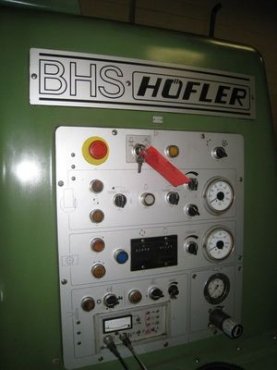

HOFLER MODEL H-1000 PRECISION GEAR GRINDER
General Specifications
Max gear diameter 1000mm
Min root diameter 35mm
Max module 14
Min module 1.5
Max grinding stroke 290mm
Max face with B=0 deg. 225mm
Min/max number teeth ground 12/372
Prime number up to 150
Max helix angle 45 deg.
Max table load 1500 Kgs.

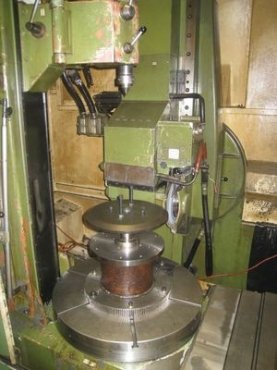

Work table diameter 750mm
Generating speed infinitely variable 90-900mm/min
Dimensions (approx.) 4400x3600x3200mm
Weight (approx.) 11800 Kg.
MACHINE REWORKED BY WEKO IN 1999 TO OBTAIN DIN 4 STANDARDS
RESULTS OF GROUND GEARS CAN BE SUPPLIED
Motor Specifications
Not Available
Equipped With
Crowning, optical helix setting
Change gears

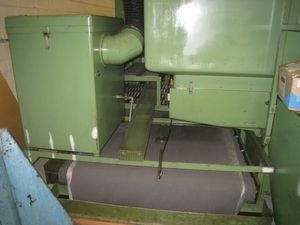

Paper filtration coolant system

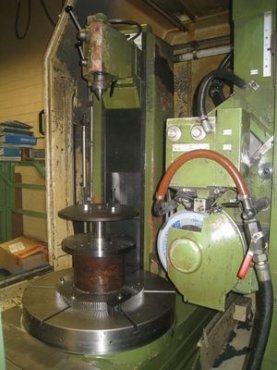

Automatic wheel dressing
Tailstock
Fully guarded
Serial Number
393 Year
1987 Location
ON LOCATION

HOFLER MODEL H-1000 PRECISION GEAR GRINDER


General Specifications
Max gear diameter 1000mm
Min root diameter 35mm
Max module 14
Min module 1.5
Max grinding stroke 290mm
Max face with B=0 deg. 225mm
Min/max number teeth ground 12/372
Prime number up to 150
Max helix angle 45 deg.
Max table load 1500 Kgs.
Work table diameter 750mm
Generating speed infinitely variable 90-900mm/min
Dimensions (approx.) 4400x3600x3200mm
Weight (approx.) 11800 Kg.
MACHINE REWORKED BY WEKO IN 1999 TO OBTAIN DIN 4 STANDARDS
RESULTS OF GROUND GEARS CAN BE SUPPLIED


Motor Specifications
Not Available


Equipped With
Crowning, optical helix setting
Change gears
Paper filtration coolant system
Automatic wheel dressing
Tailstock
Fully guarded

Serial Number
393 Year
1987 Location
ON LOCATION

25 tons
