Description:

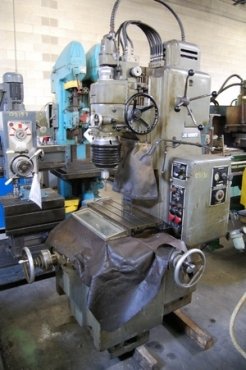

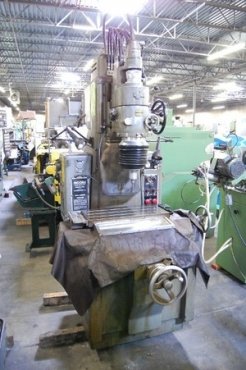

#3 MOORE JIG GRINDER
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $8,950.00
Stock # 09130
Serial # G-1753 New Dec. 1971 Model # 3G
Table Working Surface: 11" x 24"
Table Travels: 18" Longitudinal, 11" Cross
Spindle Housing Vertical Travel: 12-5/8"
Spindle Vertical Travel: 3-5/8"
Spindle to Column Ways: 10"
Spindle to Column Below Ways: 13-1/2"
Table Top to Wheel Collet: 2" to 18" Adjustable
Taper Adjustment of Spindle: Up to 1-1/2 Degrees or 3 Degrees Total
Grinding Capacity: 3/16" to 5", Up to 8" with Extension
Grinding Hole Diameter Capacity: 1/64" to 3-1/2" & Larger with Special Tooling
Compressed Air Required: 100 PSI at 35 CFM, Oil Free Less than 75 Percent Humidity
Variable Head Rotation Speeds: 4 to 250 RPM
Head Vertical Stroke Speed: 4 to 240 SPM
EQUIPPED WITH:
Adjustable Air Pressure Grinding Spindle Control
Hard Table & Saddle Ways (Box Type)
Vinyl Table Way Covers
(1) Grinding Spindle (RPM Unknown)
(2) Machine Work Lights
Bijur Spray Mist Coolant System
Wired for Single Phase, 60 Cycle, 460 Volts
Overall Size Machine: 55" L-R x 60" F-B x 96" H x 4,000 Lbs.
Specifications:
#3 MOORE JIG GRINDER
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $8,950.00
Stock # 09130
Serial # G-1753 New Dec. 1971 Model # 3G
Table Working Surface: 11" x 24"
Table Travels: 18" Longitudinal, 11" Cross
Spindle Housing Vertical Travel: 12-5/8"
Spindle Vertical Travel: 3-5/8"
Spindle to Column Ways: 10"
Spindle to Column Below Ways: 13-1/2"
Table Top to Wheel Collet: 2" to 18" Adjustable
Taper Adjustment of Spindle: Up to 1-1/2 Degrees or 3 Degrees Total
Grinding Capacity: 3/16" to 5", Up to 8" with Extension
Grinding Hole Diameter Capacity: 1/64" to 3-1/2" & Larger with Special Tooling
Compressed Air Required: 100 PSI at 35 CFM, Oil Free Less than 75 Percent Humidity
Variable Head Rotation Speeds: 4 to 250 RPM
Head Vertical Stroke Speed: 4 to 240 SPM
EQUIPPED WITH:
Adjustable Air Pressure Grinding Spindle Control
Hard Table & Saddle Ways (Box Type)
Vinyl Table Way Covers
(1) Grinding Spindle (RPM Unknown)
(2) Machine Work Lights
Bijur Spray Mist Coolant System
Wired for Single Phase, 60 Cycle, 460 Volts
Overall Size Machine: 55" L-R x 60" F-B x 96" H x 4,000 Lbs.
October 2012, dissembled, clean and replaces seals in head oscillation air pistons.
