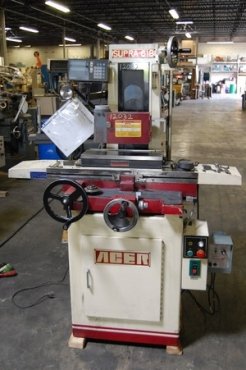

6" X 18" ACER HAND FEED SURFACE GRINDER
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $5,950.00
Stock # 12032
Serial # 97020129 New 1997 Model # SUPRA-618
Table Size: 6" x 18"
Roller Bearing Table Ways
Table Travel: 19-1/2"
Saddle Travel: 7-1/2" with Graduated Dial .0005
Wheel Head Vertical Travel: 12" with Graduated Dial .00001
Maximum Distance Table to Center of Spindle: 17"
Wheel Size: 7" x 1/2" x 1-1/4" Hole
EQUIPPED WITH:
6" x 18" Walker Fine Pole Electro Magnetic Chuck with
O.S. Walker Variable Power Chuck Controller
2-Axis Sony DRO
(2) Wheel Hubs
Table Mounted Diamond Wheel Dresser
.0001 Fine Feed Knob for Saddle Travel
Work Light
2 HP, 3 Phase, 60 Cycle, 230-460 Volt Direct Drive Spindle Motor
Machine Overall Dimensions: 52" L-R x 40" F-B x 68" H
