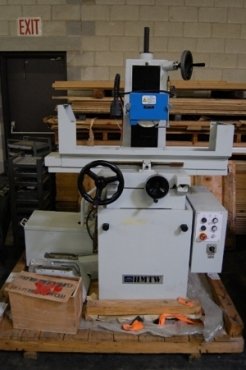

6" X 14" HMTW HAND FEED SURFACE GRINDER
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $6,500.00

Stock # 10205
Serial # 7754 New 2008 (Unused) Model # HZ-150

Table Working Surface: 6" x 14-1/4"
Overall Table Size: 6" x 18-7/16"
Table Longitudinal Travel: 15-1/2"
Table Cross Travel: 7"
Center of Grinding Spindle to Table: 14-5/8"
Grinding Wheel Size: 7" Dia. x 1/2" Wide x 1-1/4" Hole
Grinding Wheel Speed: 3000 RPM
Max. Distance from Table to 7" Dia. Wheel: 11-1/8"
Graduations on Table Cross Feed Dial: .001"
Graduations on Wheel Head Vertical Travel Dial: .0002"

EQUIPPED WITH:
Coolant System
Work Light
Wheel Balancing Arbor & Stand
(1) New Grinding Wheel & Wheel Hub
1 HP Spindle Motor, Wired 3 Phase, 60 Cycle, 220 Volts
Overall Machine Size: 46" L-R x 46" F-B x 75" H
Coolant System Size: 25" L x 13" W x 22" H
Approx. Machine Weight: 1,300 Lbs.
