Description:

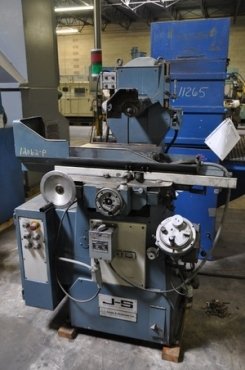

6" X 18" JONES & SHIPMAN 3-AXIS HYDRAULIC SURFACE GRINDER
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $4,750.00
Stock # 12062-P
Serial # BO14951 New 2/1987 Model # 540
Working Surface of Table: 6" x 18"
Size of Standard Grinding Wheel: 8" Dia. x 1/2" Width x 1-1/4" Bore
Centerline of Spindle to Top of Chuck: 9-3/16"
EQUIPPED WITH:
Fine Feed Knob for Crossfeed (.001" Graduation)
Fine Feed Knob for Downfeed (.0001" Graduation)
(1) Wheel Hub
Micrometer Adjustable Power Downfeed Stop to Switch
6" x 18" Electro Magnetic Chuck with Electro-Matic Control (Not Variable)
Magnetic Chuck Height: 4"
Power Feed of Each Axes
Table Left End Spark Guard
Power Traverse of Grinding Head
Belt Drive Motor to Spindle
NO Coolant Pump Tank or System
Square D Electrical Components
2 HP (1.5 kw) Spindle Motor
? HP Hydraulic Motor
Wired for 3 Phase, 60 Hz, 230-460 Volts, 3400 RPM, 30 Amps
Overall Size: 48" L-R x 37" F-B x 68" High x 2,000 Lbs.
Specifications:
6" X 18" JONES & SHIPMAN 3-AXIS HYDRAULIC SURFACE GRINDER
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $4,750.00
Stock # 12062-P
Serial # BO14951 New 2/1987 Model # 540
Working Surface of Table: 6" x 18"
Size of Standard Grinding Wheel: 8" Dia. x 1/2" Width x 1-1/4" Bore
Centerline of Spindle to Top of Chuck: 9-3/16"
EQUIPPED WITH:
Fine Feed Knob for Crossfeed (.001" Graduation)
Fine Feed Knob for Downfeed (.0001" Graduation)
(1) Wheel Hub
Micrometer Adjustable Power Downfeed Stop to Switch
6" x 18" Electro Magnetic Chuck with Electro-Matic Control (Not Variable)
Magnetic Chuck Height: 4"
Power Feed of Each Axes
Table Left End Spark Guard
Power Traverse of Grinding Head
Belt Drive Motor to Spindle
NO Coolant Pump Tank or System
Square D Electrical Components
2 HP (1.5 kw) Spindle Motor
? HP Hydraulic Motor
Wired for 3 Phase, 60 Hz, 230-460 Volts, 3400 RPM, 30 Amps
Overall Size: 48" L-R x 37" F-B x 68" High x 2,000 Lbs.
