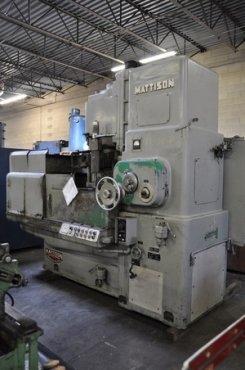

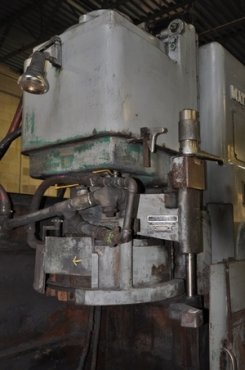

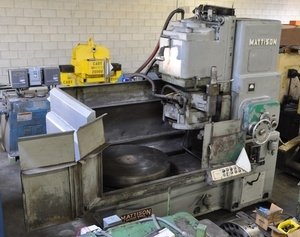

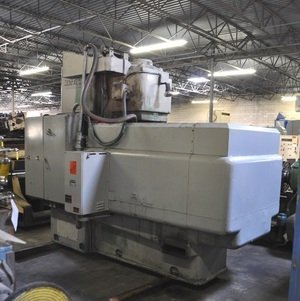

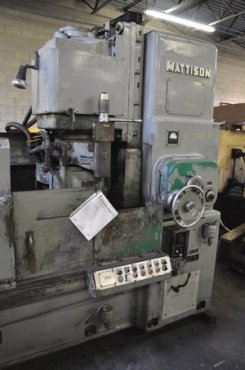

42" MATTISON ROTARY SURFACE GRINDER
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $29,500.00
Stock # 11303-P
Serial # 24-244 New 1962 Model # 24

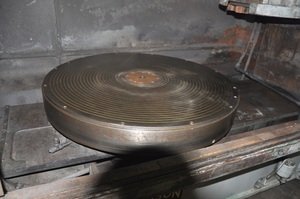

42" Electromagnetic Chuck with Neutrofier Control
Maximum Swing Inside Guards: 48"
Diameter of Segmented Grinding Wheel: 23"
Maximum Height Under New Wheel: 24"
(4) Gear Box Driven Chuck Speeds: 8 to 32 RPM
Chuck Life Remaining: 1/2"
(11) Feed Rates: 5 to 165 IPM
EQUIPPED WITH:
Fully Enclosed Table Guarding
Segmented Style Wheels (No Stones)
Wheel Dresser (Parts Missing)
Motor Load Meter
Manual Lube Pumps
Power Chuck Carriage Infeed
No Coolant System
50 HP Main Motor
Wired for 3 Phase, 60 Cycle, 220/440 Volts
Currently Wired for 440 Volts
Overall Size: 132" L-R x 63" F-B x 106" H
