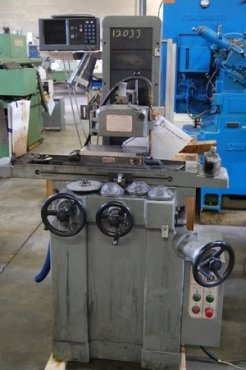

6" X 16" SHARP HAND FEED SURFACE GRINDER
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $4,950.00
Stock # 12033
Serial # 9311015 New 1993 Model # SP616
Table Size: 6" x 16"
Table Longitudinal Travel: 17-1/2"
Saddle Travel: 7-1/2" with Graduated Dial .001
Vertical Travel: 11-1/2" with Graduated Dial .0005
Maximum Distance Center of Spindle to Table: 16-1/2"
Wheel Size: 7" x 1/2" x 1-1/4" Hole
EQUIPPED WITH:
Roller Bearing Ways to Long Table Travel
(2) Wheel Hubs
Coolant Pump & Piping (No Tank)
1 Shot Lube
6" x 12" x 2-9/16" Taft Peirce Permanent Magnetic Chuck
Over the Wheel Dresser with Diamond
Work Light
(3) Level Feet
2 HP, 3 Phase, 60 Cycle, 220-440 Volt Direct Drive Spindle Motor
Machine Overall Dimensions: 46" L-R x 43" F-B x 66" H
