Description:

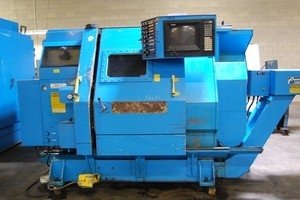

CINCINNATI CINTURN 4-AXIS SLANT BED CNC LATHE
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $9,750.00
Stock # 12051
Serial # 5340C10-85-003 New 1985 Model 10C-AF, Series 1410

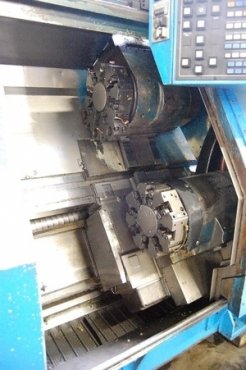

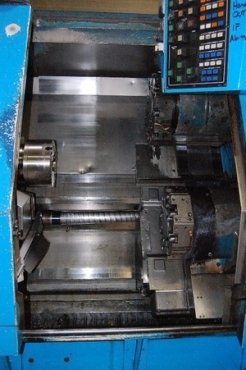

Upper and Lower 8-Position Tool Turrets
Spindle Speeds: 30 to 3000 RPM
Swing Over Bed Ways: 30"
Swing Over Carriage: 12-1/2"
Feed Rate: 1 to 200 IPM
Hole Thru Power Chuck Draw Tube: 3-3/16"
Meter Shows In Cycle Elapsed Time 94064.x Hours and 15789.x Power On Hours
30 HP Main Motor, Wired for 240 Volts Only
EQUIPPED WITH:

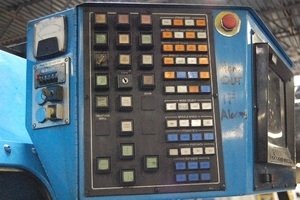

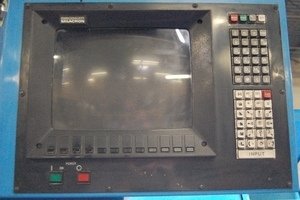

Cincinnati Milacron Simoreg CNC Control
10" 3-Jaw Thru Hole Power Chuck with Actuator System
(3) Bolt-On Type Boring Bar Tool Holders
Max Pak Plus Variable Spindle Drive Unit for 30 HP, 50/60 Hz
(1) Upper and (1) Lower 8-Position Tool Turrets
Coolant Thru the Tool Turret Stations
NO Tailstock, Chuck Jaws or Tool Holders
Straight Turning Tool Holders Built Into the Face of the Tool Turrets
Parts Counter and Catcher System
Chip Conveyor with Coolant Pump
Spindle Load Meter
Hardened Ground Box Ways
Hydraulic System and Electrical Transformer All Built onto Machine Base
59.5 KVA Transformer, Primary 230Volts,Secondary 460 Volts Delta, 3 Phase, 60 Hz
Machine Presently Setup for ?Volt Input Power
Main Motor Cooling Fan System
Fanuc Paper Taper Reader
Overall Size: 175" Long (Fully Assembled) x 94" F-B x 88" High on 3-1/2" Blocks x ? Lbs.
Presently Wired for 460 Volt Operation
