FEMCO MODEL HL-15 2-AXIS CNC TURNING CENTER
General Specifications
Max. Turning length 15"
Max. Swing over bed 17.75"
Max. Turning diameter 9.84:
Max. Spindle speed 6000 RPM
Spindle nose A2-5
Bar capacity 1.77"
Max. chuck diameter 6"
Spindle motor direcct drive 15 HP
Spindle bore 2.20"
Number of stations, Turrets 12
Turning tool O.D./I.D. 0.75"/1.25"
X-Axis travel 5"
AC servo motor 2.1 HP
Z-Axis travel 15.7"
AC servo motor 2.1 HP
Power requirments 220V/3PH/60Hz /80AMP Machine dimensions 70"Lx50"Wx67"H Weight (approx) 6200 Lbs
Motor Specifications
Not Available
Equipped With
Fanuc OT CNC controls

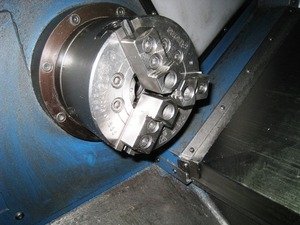

6" 3-Jaw chuck
12 Position turret
Misc. turret toolholders
Tailstock
Chip conveyor
Splash guards Coolant system
Serial Number
LJ-0819 Year
2002 Location
PROSPECT HEIGHTS, IL
