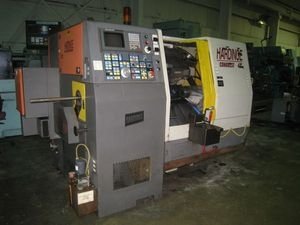

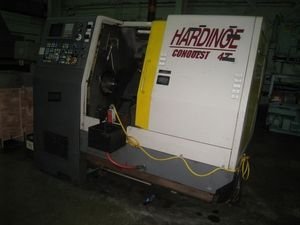

HARDINGE CONQUEST T42 2-AXIS BIG BORE CNC SLANT LATHE WITH
SUB SPINDL EAND BAR FEED
SERIAL NUMBER SG-733 NEW 1995
Page 1 of 2
GENERAL SPECIFICATIONS:

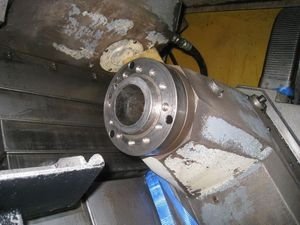

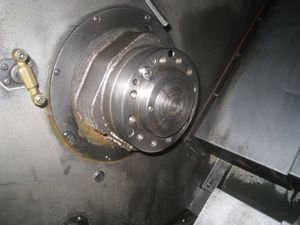

Spindle:
Spindle configuration (ANSI) A2-6", 20C
Round collet (through capacity) 2.0"
Hole thur spindle 2-378
Sub-Spindle ANSI A2-5"
Hole though spindle 1.890"
Round 16c Collet (through capacity) 1.625"
AC Drive System 5 HP
Torque rating @1,500 RPM base speed 17.5 ft-lb
Speed range (1-RPM steps) 80-6000 RPM AC Digital Drive System:
Standard 15 HP
Torque rating 51.5 ft-lb
Speed range (1-RPM steps) 40 - 4400 RPM Carriage and Cross Slide:
Swing diameter over upper way cover 21.2"
Preloaded ball screw diameter 1.259"
X-axis travel (max) 5.31"
X-axis rapid traverse rate 472 IPM
Z-axis rapid traverse rate 630 IPM
Z-axis travel 13.9"

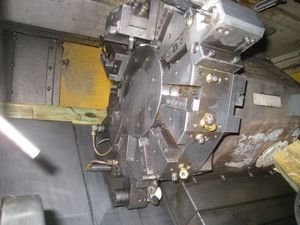

Vertical Thrust:
No. of positions 12
Max. square shank tool size 3/4"
Max. round shank tool size 1-1/4"
Max. distance from spindle face to turret face 14"
Turret indexing time (next station) .77 seconds
Turret indexing time (furthest station) 1.24 seconds
Turret indexing accuracy +/-1 arc sec.
Max. turning diameter with std. qualified
3/4" square shank tool (1" head) 9.5"
Electrics 220V,3 PH,60 CYC
Weight (approx.) 10,000 Lbs
Page 2 of 2
EQUIPPED WITH:

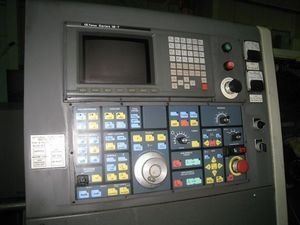

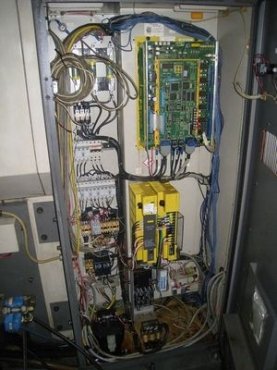

GE Fanuc 18TB control
20C Collet spindle, 2.0"
Sub Spindle
Iemca Boss 542 Automatic bar feeder
Parts catcher
Chip conveyor
Barfeed interface
Approx. Dimensions:
Machine - 102" x 82" x 80"
Bar feed - 270" x 45" x 76"
Chip conveyor - 93" x 26" x 59"
High Pressure:
Coolant unit - 34" x 32" x 90"
Pallet parts - 48" x 48" x 29"
