Stock Number: 10834 --- MORI SEIKI ZL-25A/500 4-AXIS CNC TURNING CENTER, 10.2"MAX. TURN, 21.7" MAX. LENGTH, 4-AXIS, 2 TURRETS, 4200 RPM, 2.4" BORE, MORI/FANUC MSD516, FANUC 16T CNC, 6064 HOURS, NEW 1995 --- PHOTO AVAILABLE

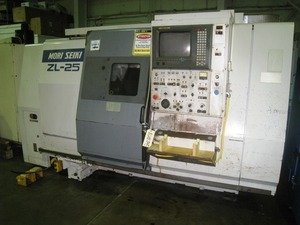

MORI SEIKI MODEL ZL-25A/500 4-AXIS CNC TURNING CENTER


General Specifications
Swing over bed 20.5"
Swing over cross slide 13.8"
Between centers 25.4"
Max. machining diameter 10.2"
Max. machining length 21.7"
X-Axis Up:6.3"(1.2"+5.1")
Z-Axis Up:23.2"(Down:23.2")
Spindle speed 42-4200 RPM
Spindle nose JIS A-6
Hole thru spindle 2.4"
Spindle I.D. 4.3"
Shank height for square tool 1.0"
Shank diameter for boring bar Max. 2.0"
Rapid feed rate (Z-Axis) 590.6"
Tailstock stroke 23.2"
Tailstock quill taper MT3
Tailstock quill stroke 3.1"
Electric power supply 40 Kva Machine Weight (approx) 15,400 Lbs NOTE: CUTTING HOURS 6,064


Motor Specifications
Not Available


Equipped With

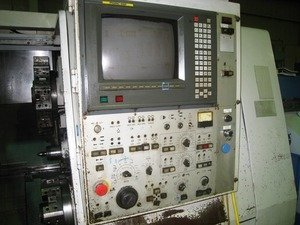

Mori/Fanuc MSD-516 (Fanuc 16T) CNC controls

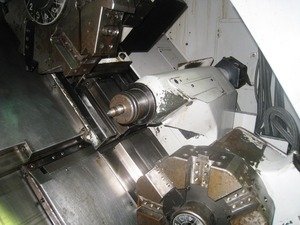

Programable tailstock

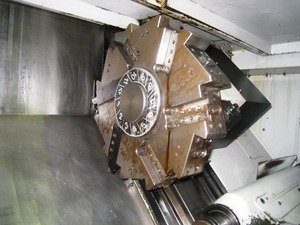

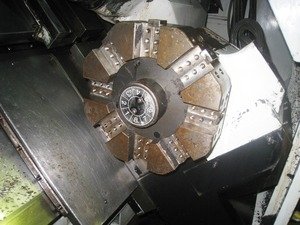

(2) Turrets
Misc. turret toolholders
Collect chuck
Chip Conveyor
Splash guards

Serial Number
654 Year
1995 Location
PROSPECT HEIGHTS, IL



http://www.youtube.com/watch?v=49VYcizLDNY video

214" X 77"X94.4"H

14,000 Lbs
