5/8"/16MM TRAUB TNL16G CNC SLIDING HEADSTOCK (SWISS TYPE) AUTOMATIC WITH MAGAZINE BAR FEEDER
General Specifications
The TNL16G series Sliding Headstock Mill/Turning Centre was specially designed for machining of bar stock up to 16mm diameter, with 7 NC - axies, Two work spidles and two 6 station turrets (All turret tooling can be driven), The machine is equipped for precision high speed production requirements. With the included "Y" axis on the opposite spindle with an additional of 3 static tools for end working, all individual turning and milling requirments are covered. The tools of both turrets can be directed towards the main and opposed spindles together. Alternatively, either turret can be used to machine work piees at either the main or opposed spindles therefore offering optimal flexibility.
For complete automation the machine is equipped with the high speed LNS Hydrobar Mini Spring 4 metre bar feed and magazine. Parts removal is via a hydraulic parts catcher for Parts up to 140mm long, this transfers the finished work piece to an integral parts conveyor for transporting the work piece out of the machining ara. Or optionally the removal of the parts can be through the opposite spindle for long shaft type components
up to 500mm in length.
Max. working deg for working with the bar loading magazine 16mm
Max. work piece length 500mm
Max. turning length (1 stroke) 200mm
Spindle head useable (main spindle) 200mm
Max. longitudinal travel (opposed spindle) 300mm
Max. stroke Y-travel (opposed spindle) 155(+140/-15)mm
Speed range driven tools 200-5000 UpM/RPM
Number of Axes 7
Main spindle drive (A.C. main drive with:) 2.8/4.4. Kw
Opposite spindle drive (A.C. Opposite spindle drive with:) 1.9/3.05 Kw
Main & Opposed spindles C Axis
Number of turret stations 2 x 6
Static tool stations (3 fixed tool station for end working at the main spindle)
Rotating tool drive both turrets
Number of driven tool stations 2 x 6
Hydraulic chcking cylinder (hollow, feed finger clamping mechanism)
Through tool coolant 5 bar
Main & Oppoosed spindle (Both spindles) 16mm capacity
Max. speed 7000 RPM
Swarf conveyor (discharge height) 650mm
Central lubrication system Yes
2
Stock 12
3
SERIAL NUMBER 4 NEW 5
GENERAL SPECIFICATIONS: (CONT.)
Main spindle guide bush: Driven guid ebush direct drive Main spindle collet chuck: To accept Collets Opposite spindle colelt chuck: To accept collets
Motor Specifications
Not Available
Equipped With

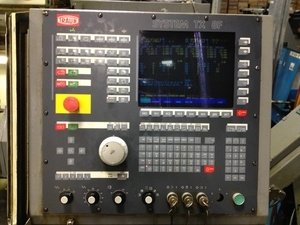

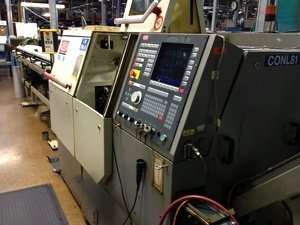

Traub TX8F 32 Bit CNC controls with 14" Color monitor
Traub automatic tool position calculation

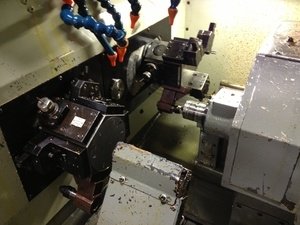

(2) 6 Station turrets with live driven tools
Subspindle with Y-axis
3 Fixed tool stations for end working on main spindle
C-Axis on Main & Sub spindles
Parts catcher
Collet chuck on main & sub spindle, F-20 Push type collets
LNS mini sprint hydrobar magazine barfeeder
Misc tooling including driven tools
Chip conveyor Coolant system
Serial Number
NA Year
1995 Location
PROSPECT HEIGTHS, IL
