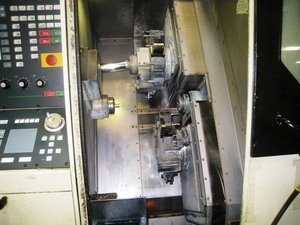

TRAUB MODEL TNS-26-DGY CNC TURNING CENTER WITH SUB SPINDLE, LIVE TOOLING & Y-AXIS
General Specifications
Main spindle
Spindle capacity (max. bar dia.) 26mm (1.02")
Turning length per turret 270mm (10.63")
Spindle speed max. 8000 RPM
AC motor, infinitely variable speed Power rating 11kw (15 HP)
Max. torque Nm (ft lb) 105 (50)
Constant power rating 1:7
Spindle nose register dia. 90mm (3.543")
Counter Spindle:
Spindle capacity (Max. bar dia.) 26mm (1.02")
Spindle speed max. 8000 RPM
AC motor, infinitely variable speed
Power rating5.5kw (7.5 HP)
Max. torque 35Nm (17'Lb)
Constant power rating 1:4
Spindle nose register dia. 85mm (3.346") Turrets
Number of turrets 2
Tool bores
for cyl. shanks to DIN 69880 12 each
Nominal dia. x-length 25x48mm (.984x1.890")
Cutting tool shank
section to DIN 69880 16x16mm(.630x.630")
Average chip-to-chip-time 1.17 Sec.
Indexing time 1st position 0.4 Sec.
each additional position0.12 Sec.
Drive for rotating turret tools
Number of driven tools 2 x 12
Power rating (15% duty cycle) 2.6kW (3.5 HP)
Max. torque (15% duty cycle) 4Nm (1.9' Lb.)
Max. spindle speed 8000 RPM
Feed drives
X-axes (S1+S2)
Rapid traverse and feed rate 12mm (472" Min)
Feed thrust 3000N (600 Lb)
Feed traverses80mm (3.150")
Z-axes (S1+S2)
2
Stock# 10809
2

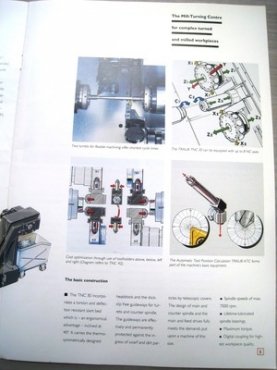

TRAUB MODEL TNC-30-DGY 8 AXIS CNC MILLING & TURNING CENTER
GENERAL SPECIFICATIONS (Con't):
Rapid traverse and feed rate 15mm (590" Min.)
Feed thrust 5000N (1000")
Feed traverses270mm (10.630")
Y-axes (TNC 30 DGY)
Rapid traverse and feed rate 7.5mm (295" Min.)
Feed thrust 5000N (1000 Lbs)
Feed traverses330mm (12.992")
C-axesOption Machine DimensionsLength x depth2432x1890mm (95.7x74.4")Height 1850mm (72.8")Weight 3540Kg (7800lbs)(with counter spindle and switchgear cabinet)Total installed power rating35kW (47lbs)
Motor Specifications
Not Available
Equipped With
(2) Work spindles (main & sub-spindle)
(2) Turrets each with (12) driven live tools
(2) C-axis positioning (Main & Sub-spindles)
Y-axis on upper turret
Z-axis positioning of sub-spindle in/out
Both turrets can work either or both spindles simultaneously
Misc tooling including (4) live tools
Automatic tool position compenstion
Polygon milling
Parts catcher/workpiece separator

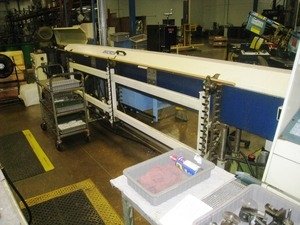

LNS Mini sprint bar feed, S/N 45167

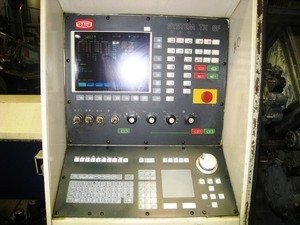

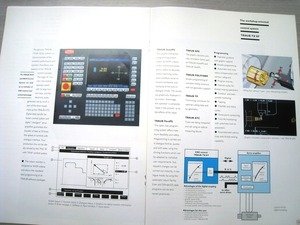

Traub TX-8F 32-bit CNC controller with color graphics
Serial Number
0257 Year
1992 Location
PROSPECT HEIGHTS, IL
