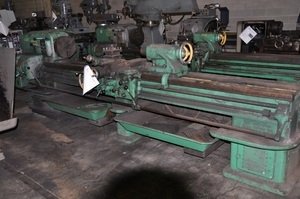

16" X 102" AMERICAN PACEMAKER ENGINE LATHE
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $3,950.00
Stock # 12118-P
Serial # 72166-50 New 1950 Model: Pacemaker
Swing Over Ways: 19-1/2"
Swing Over Cross Slide: 10-1/2"
Distance Between Centers: 102"
Spindle Nose Type: L-1
(24) Spindle Speeds: 34 to 2000 RPM
Spindle Bore: 1-3/4"
(48) Threads: 1-1/2 to 92 Threads Per Inch
(48) Feeds: .002" to .118" Per Revolution
(48) Leads: .0108" to .8888" Inches
EQUIPPED WITH:
Thread Chasing Dial
12" 3-Jaw Chuck with 2-Piece Jaws Hard Reversible Top Jaws
Chuck Wrench and Tailstock Clamp Wrench
6" Square Turret Type Tool Post
Tailstock Quill Has a Built in Live Center (Needs New Bearings)
One Shot Saddle and Way Lubrication System
Tailstock Hand Crank Positioner System - No Crank Handle
Friction Style Spindle Clutch
Hardened and Ground Bedways in Good Condition
(2) Removable Chip Pans
1/4 HP Gusher Coolant Pump (No Piping) 440 Volts Only
No Spindle Spanner Wrench
Approx. 10 HP Main Motor
Wired for 3 Phase, 60 Cycle, 220/440 Volt Operation
Overall Size: 169" L-R x 49" F-B x 52" High x Approx. 6,500 Lbs.
