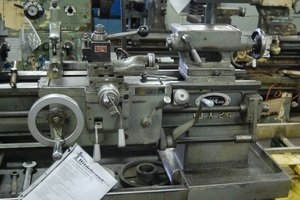

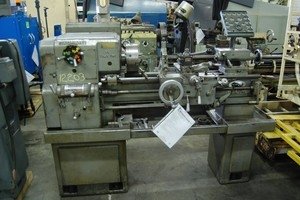

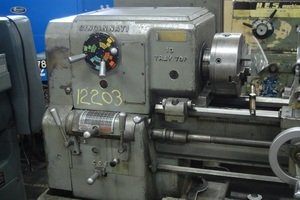

10" X 24" CINCINNATI TRAY TOP ENGINE LATHE
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $3,950.00
Stock # 12203
Serial # 1W1B6C44 Model: LE
Actual Swing Over Bedways: 11-1/8"
Actual Swing Over Cross Slide: 6-7/8"
Spindle Mount: L-00 (Long Taper)
Spindle Thru Hole: 1-11/32"
(12) Spindle Speeds: 53 to 1800 RPM
(48) Feeds: .0020 to .1224 Thous. Per Revolution
(48) Threads: 3 to 184 TPI
#2 Morse Taper in Tailstock
EQUIPPED WITH:
Hardened & Ground Bedways in Good Condition
Micrometer Carriage Stop
Thread Chasing Dial
Aloris Model BXA Quick Change Tool Post with (1) BXA7 Part Off Tool Holder
9-1/2" Face Plate
9" 3-Jaw Chuck with OD & ID Jaw Sets
7" Drive Plate
3-1/2" Solid Bronze Tip 3-Point Steady Rest
Bolt on Collet Rack Holder (No Collets)
Chuck Wrench
Spindle Spanner Wrench
Machine Work Light
Removable Chip Pan
NO Coolant System
1-1/2 HP Baldor Main Motor, Wired 3 Phase, 208-230-460 Volts
Presently Wired for 220 Volt Operation
Overall Dimensions: 72" L-R x 33" F-B x 55" H,
Approx. Weight: 1,600 Lbs.
