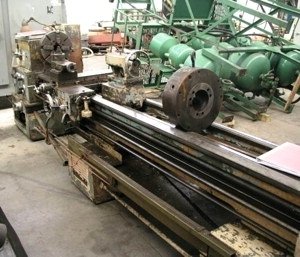

24" x 130" HES ENGINE LATHE
PRICE: Loaded on Truck, Our Warehouse, York, PA
Stock # 07307
Serial # 11448New 1970Type: Cholet 660
Made in France
CATALOGUE SPECIFICATIONS:
Swing Over Bed Ways: 26"
Swing Over Cross Slide: 24-3/8"
Spindle Nose: ASA-A1-6" Direct Bolt on Type
Spindle Bore: 2-1/16"
Headstock Bore Taper: 60 Metric
(18) Spindle Speeds: 36 to 1800 RPM
(28) Longitudinal Feeds: 0.002 to 0.028 Thousandths Per Revolution
(28) Cross Feeds: 0.0015 to 0.018 Thousandths Per Revolution
(28) Metric Pitches: 0.5 to 7
(28)Whitworth Pitches: 56 to 4 Threads Per Inch
NOTE: Does Not Have All Necessary Quadrant Gears for a Full Range Feeds
& Threads.
Leadscrew Pitch: 4 Threads Per Inch (6 mm)
Cross Slide Travel: 13-3/4"
Top Compound Travel: 6-1/8"
EQUIPPED WITH
Hardened and Ground Bed Ways in Good Condition
Thread Chasing Dial
Rapid Traverse to Carriage and Cross Slide
Carriage and Cross Slide Feed Stops
All Movement Dials have Inch Graduations on Them
Quick Change Tool Post with (1) Holder
16" 4-Jaw Chuck with 1-Piece Hard Reversible Chuck Jaws
15-3/4" 3-Jaw Chuck with 2-Piece Jaws and Hard Reversible Top Jaws
8-1/4" Dead Type Steady Rest
6-3/4" Dead Type Steady Rest
(2) Removable Chip Pans
Tailstock Quill Diameter: 3-1/4" with #5 Morse Taper
Adjustable Carriage Stop
Machine Work Light
Foot Pedal Spindle Brake
One Shot Carriage Lubrication System
HES Instruction and Parts Manual
NO Chuck Wrenches
? HP Coolant Pump Motor, No Coolant Piping
12 HP Main Motor, Presently Wired for 3 Phase, 60 Cycle, 220 Volts
Overall Size: 189" Long x 47" F-B x 56" High x Approx. 7,300 Lbs.

24" X 130" HES ENGINE LATHE
Loaded on Truck, Our Warehouse, York, PA

Stock # 07307
Serial # 11448 New 1970 Type: Cholet 660

Made in France
CATALOGUE SPECIFICATIONS:
Swing Over Bed Ways: 24-3/8"
Swing Over Cross Slide: 15"
Spindle Nose: ASA-A1-6" Direct Bolt on Type
Spindle Bore: 2-1/16"
Headstock Bore Taper: 60 Metric
(18) Spindle Speeds: 36 to 1800 RPM
(28) Longitudinal Feeds: 0.002 to 0.028 Thousandths Per Revolution
(28) Cross Feeds: 0.0015 to 0.018 Thousandths Per Revolution
(28) Metric Pitches: 0.5 to 7
(28)Whitworth Pitches: 56 to 4 Threads Per Inch
NOTE: Does Not Have All Necessary Quadrant Gears for a Full Range Feeds
& Threads.
Leadscrew Pitch: 4 Threads Per Inch (6 mm)
Cross Slide Travel: 13-3/4"
Top Compound Travel: 6-1/8"

EQUIPPED WITH
Hardened and Ground Bed Ways in Good Condition
Thread Chasing Dial
Rapid Traverse to Carriage and Cross Slide
Carriage and Cross Slide Feed Stops
All Movement Dials have Inch Graduations on Them
Quick Change Tool Post with (1) Holder
16" 4-Jaw Chuck with 1-Piece Hard Reversible Chuck Jaws
15-3/4" 3-Jaw Chuck with 2-Piece Jaws and Hard Reversible Top Jaws
8-1/4" Dead Type Steady Rest
6-3/4" Dead Type Steady Rest
(2) Removable Chip Pans
Tailstock Quill Diameter: 3-1/4" with #5 Morse Taper
Adjustable Carriage Stop
Machine Work Light
Foot Pedal Spindle Brake

One Shot Carriage Lubrication System
HES Instruction and Parts Manual
NO Chuck Wrenches
? HP Coolant Pump Motor, No Coolant Piping
12 HP Main Motor, Presently Wired for 3 Phase, 60 Cycle, 220 Volts
Overall Size: 189" Long x 47" F-B x 56" High x Approx. 7,300 Lbs.
