Description:

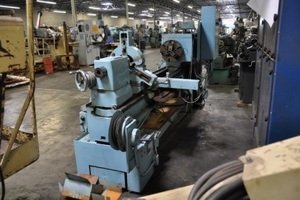

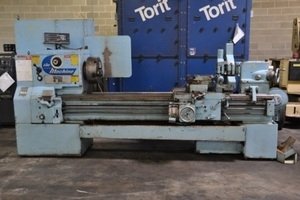

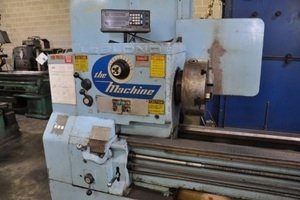

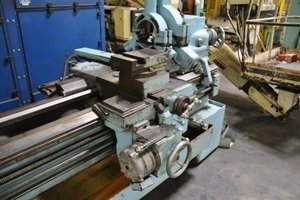

26" X 72" LEBLOND ENGINE LATHE
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $14,500.00
Stock # 12146
Serial # HSL-171 New 1978
Swing Over Ways: 26"
Swing Over Cross Slide: 18-1/2"
(24) Spindle Speeds: 27 to 2160
Spindle Hole: 2-1/8"
Spindle Nose: D1-8 Camlock
Feeds: .003 to .205 TPR
Threads: 2 to 112 TPI
Tailstock Quill: 3-5/8" Diameter with #5 Morse Taper
Taper Attachment
Rapid Traverse to Carriage
6-1/2" Square Turret Toolpost
2-Axis Acu-Rite Digital Readout
Hard Replaceable Bed Ways
15" Cushman 3-Jaw Chuck with Hard Reversible Top Jaws
18" 4-Jaw Chuck with Hard Reversible Top Jaws
8-1/2" Roller Steady Rest & 7" Roller Steady Rest
Roller Type Follow Rest
2-Speed Spindle Drive Motor, 10/20 HP, 3 Phase, 60 Cycle, 440 Volts
Overall Dimensions: 162" L x 60" W x 77" H
Approx. Weight: 6,000 Lbs.
Specifications:
26" X 72" LEBLOND ENGINE LATHE
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $14,500.00
Stock # 12146
Serial # HSL-171 New 1978
Swing Over Ways: 26"
Swing Over Cross Slide: 18-1/2"
(24) Spindle Speeds: 27 to 2160
Spindle Hole: 2-1/8"
Spindle Nose: D1-8 Camlock
Feeds: .003 to .205 TPR
Threads: 2 to 112 TPI
Tailstock Quill: 3-5/8" Diameter with #5 Morse Taper
Taper Attachment
Rapid Traverse to Carriage
6-1/2" Square Turret Toolpost
2-Axis Acu-Rite Digital Readout
Hard Replaceable Bed Ways
15" Cushman 3-Jaw Chuck with Hard Reversible Top Jaws
18" 4-Jaw Chuck with Hard Reversible Top Jaws
8-1/2" Roller Steady Rest & 7" Roller Steady Rest
Roller Type Follow Rest
2-Speed Spindle Drive Motor, 10/20 HP, 3 Phase, 60 Cycle, 440 Volts
Overall Dimensions: 162" L x 60" W x 77" H
Approx. Weight: 6,000 Lbs.
