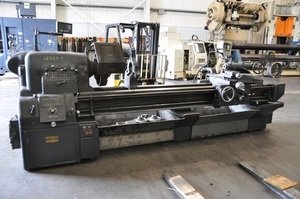

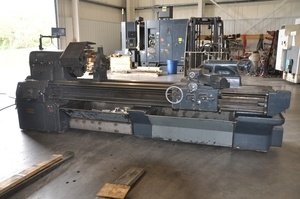

20" X 96" MONARCH ENGINE LATHE
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $7,950.00
Stock # 12233-P
Serial # 40844 New 8-1955 Series 61

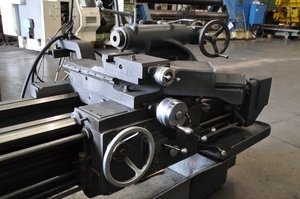

This machine was originally designed with an Air Gage tracer system. At an unknown point in time, the tracer system was removed but the fixed angle compound still remains on the machine.
Catalogue Size: 20"
Actual Swing Over the Bed: 24-1/2"
Turning Capacity Over Cross Slide: 11" Diameter
Spindle Speeds: 17 to 700 RPM
Spindle Nose: D-1-6" Camlock
Spindle Thru Hole: 1-9/16"
(66) Feed Changes: .0014" to .0841" Per Revolution
(66) Threads: 2 to 120 Threads Per Inch
Metric Transposing Gears Available from Monarch Factory (Not Supplied With Machine)
Headstock Center Taper: #4 Morse
Tailstock Taper: #4 Morse
Tailstock Quill Diameter: 3-3/8"
Leadscrew Size: 1-1/2" Diameter x 4 Threads Per Inch
EQUIPPED WITH:
19-1/2" Dia. 4-Jaw Chuck with 2-Piece Jaws with Hard Reversible Top Jaws
NO Chuck Wrench or Tool Post
Swing Up Type Chuck Guard

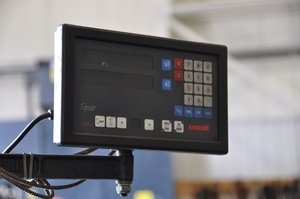

2-Axis Newall Topaz Digital Readout
6" Roller Type Steady Rest
(2) Jacobs Rubber Flex Collet Chucks with (4) Boxes of Assorted Collets
4-Way Rapid Traverse to Carriage and Cross Slide
Rapid Traverse Presently Not Operational

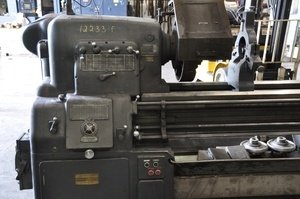

Helical Geared Head Stock
Flame Hardened and Ground Bedways in Good Condition
Automatic Lubrication to Carriage, Cross Slide and Bedways
All Traverse Dials are Graduated for Inch Dimension
Thread Chasing Dial
(2) Removable Chip Pans
Coolant Pump (No Piping)
Machine Work Light

Machine Parts and Operations Manuals
15 HP Main Motor
Wired for 3 Phase, 60 Hz, 230/460 Volts
Presently Wired for 440 Volts
Machine is in Good Running Condition
Overall Size: 178" Long x 53" F-B x 61" High
Weight: Approx. 8,000 Lbs.
