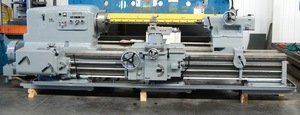

48" X 108" MONARCH HEAVY DUTY DYNA-SHIFT LATHE
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $54,500.00
Stock # 11169
Serial # 42218 Model: Series 90
Catalogue Size 2502
New 1957
Swing Over Bed Ways: 48"
Swing Over Cross Slide: 36"
Spindle Hole Size: 4-1/16"
Spindle Type: D1-11
Spindle Taper: 7 MT
(36) Spindle Speeds: 6 to 750 RPM
(48) English Threads: 1/2 to 28 TPI
Metric Threads: 3/4 to 42 MM (Purchase of Change Gears Required)
(48) Carriage Feeds: .0035 to .196 IPR
Bed Width: 31-1/2"
Saddle Width: 47"

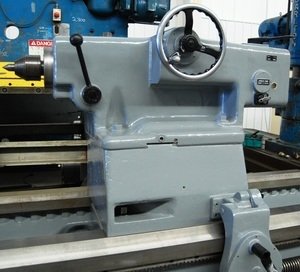

Tailstock Diameter: 7"
Tailstock Taper: #5 MT
Distance Between Centers: 108"
EQUIPPED WITH:

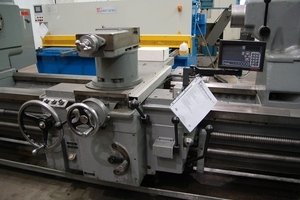

Newall 2-Axis Digital Readout (New Jan. 2011)
20" 3-Jaw Chuck and 28" 4-Jaw Chuck

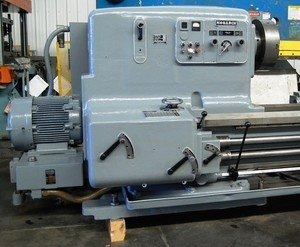

Hydraulic Shifting of Headstock Speeds
Rapid Traverse of Carriage Left & Right
Quick Change Feed & Treading Gear Box
Hardened and Ground Bed Ways
Thread Chasing Dial with Lead Screw and Half Nut
40 HP, 1760 RPM, 220/460 Volt, 100/50 Amp Main Motor
Overall Size: Machine 21' Long x 85" Wide x 69" High x 33,000 Lbs.
28" 4 Jaw Chuck 600 Lbs.
