Description:

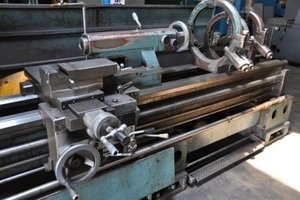

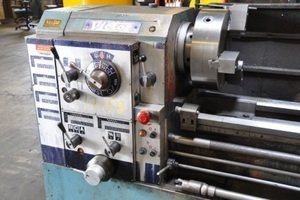

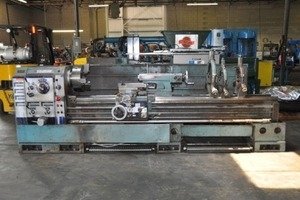

24" X 100" VICTOR GAP BED LATHE
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $15,000.00
Stock # 12158
Serial # 912042 Model # 24100G
Swing Over Ways: 24"
Swing Over Cross Slide: 14-1/2"
Swing in Gap: Approx. 34"
Distance from Spindle Nose to End of Gap: 11-1/2"
(12) Spindle Speeds: 21 to 1500 RPM
Spindle Nose: D1-8 Camlock
Spindle Bore: 3-1/8"
Cross Slide Feeds: 1.6 to 12.1 TPR
Carriage Feeds: 3.6 to 26.6 TPR
Inch Threading: 3-1/2 to 26 TPI
Metric Threading: 1.25 to 11 TPMM
Tailstock Quill Travel: 10"
Quill Dia. 3-1/2"
Quill Taper: #5 Morse
EQUIPPED WITH:
15-3/4" 3-Jaw Chuck with 2-Piece Jaws & 5-1/4" Hole
Full Length Rear Splashguard
(3) Roller Steady Rests: 9", 13", 16"
Chip Pans
Coolant
Micrometer Carriage Stop
Chuck Chip/Splash Guard
15 HP Motor, Wired 3 Phase, 60 Cycle, 220 Volts
Overall Size: 13' L x 53" W x 52" H
