Description:

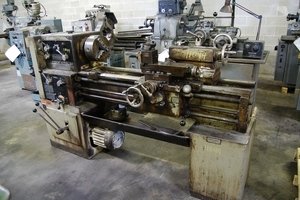

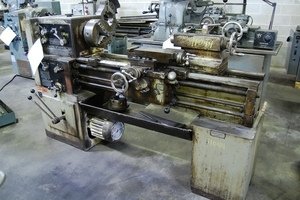

17" X 36" VOEST ENGINE LATHE
PRICE: Loaded on Truck, Our Warehouse, York, PA
Stock # 11044
Serial # 1-037-1-4091 Age Unknown Model # Unknown
Built in Austria
Swing Over Bed: 17"
Swing Over Cross Slide: 10-1/2"
Distance Between Centers: 36"
Spindle Bore: 1-13/16"
Spindle Nose: L-0
Tailstock Spindle Taper: #4 Morse
(12) Spindle Speeds: 21 to 1,500 RPM
(66) Longitudinal Feeds: .0027 to .150 IPR
(66) Cross Feeds: .0014 to .075 IPR
(66) Thread Range Inch: 1 to 56 TPI
(66) Thread Range Metric: .5 to 28 MM
EQUIPPED WITH:
10" 3-Jaw Chuck, 2-Piece Jaws with Hard Reversible Top Jaws,
Plain Back with Adapter Plate
6" 3-Jaw Chuck, 2-Piece Jaws with Hard Reversible Top Jaws,
Plain Back with Adapter Plate
Adjustable Carriage Stop
(5) Assorted Feed/Thread Change Gears
Timken Bearings
Chuck and Spanner Wrenches
Diametral Pitch Threading
Induction Hardened Bed Ways - Good Condition
Threading Chasing Dial
Removable Chip Pan
7.5 HP Motor, Wired for 3 Phase, 60 Hz, 220-440 Volts
Presently Wired for 220 Volt Operation
Overall Size: 84" Long x 30" F-B x 50" High x 4,000 Lbs.
Specifications:
17" X 36" VOEST ENGINE LATHE
PRICE: Loaded on Truck, Our Warehouse, York, PA
Stock # 11044
Serial # 1-037-1-4091 Age Unknown Model # Unknown
Built in Austria
Swing Over Bed: 17"
Swing Over Cross Slide: 10-1/2"
Distance Between Centers: 36"
Spindle Bore: 1-13/16"
Spindle Nose: L-0
Tailstock Spindle Taper: #4 Morse
(12) Spindle Speeds: 21 to 1,500 RPM
(66) Longitudinal Feeds: .0027 to .150 IPR
(66) Cross Feeds: .0014 to .075 IPR
(66) Thread Range Inch: 1 to 56 TPI
(66) Thread Range Metric: .5 to 28 MM
EQUIPPED WITH:
10" 3-Jaw Chuck, 2-Piece Jaws with Hard Reversible Top Jaws,
Plain Back with Adapter Plate
6" 3-Jaw Chuck, 2-Piece Jaws with Hard Reversible Top Jaws,
Plain Back with Adapter Plate
Adjustable Carriage Stop
(5) Assorted Feed/Thread Change Gears
Timken Bearings
Chuck and Spanner Wrenches
Diametral Pitch Threading
Induction Hardened Bed Ways - Good Condition
Threading Chasing Dial
Removable Chip Pan
7.5 HP Motor, Wired for 3 Phase, 60 Hz, 220-440 Volts
Presently Wired for 220 Volt Operation
Overall Size: 84" Long x 30" F-B x 50" High x 4,000 Lbs.
