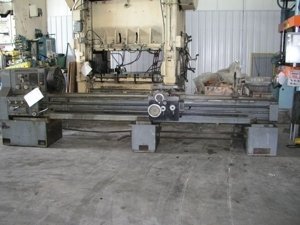

21" X 120" TARNOW GAP BED ENGINE LATHE
PRICE: Loaded on Truck, Our Warehouse, York, PA



Stock # 08164

Serial # 2472 New 1975 Model # TUJ-50

Made in Poland

Swing Over Ways: 21"

Swing Over Cross Slide: 12"

Swing in Gap: 30"

Length of Gap: 9"

Spindle Nose: D6 Camlock

Spindle Bore: 2-1/8"

(16) Spindle Speeds: 35.5 to 1800 RPM

Module Threads: 1 to 28

Diametral Pitch Threads: 1 to 28

Threads Per Inch: 1 to 28

Metric Threads: 1 to 28

Metric Feeds: 0.4 to 1 MM/Rev

Inch Feeds: .0036 to .18 Inch/Rev

16" 4-Jaw Chuck with 1-Piece Hard Reversible Jaws

(1) Chuck Wrench

Tailstock Taper: # 5 Morse

10" Roller Type Steady Rest

Taper Attachment

(13) Assorted Additional End Quadrant Change Gears

Hardened & Ground Bed Ways in Good Condition

Thread Chasing Dial

All Traverse Dials Have Inch Graduations

(2) Removable Chip Pans

Built in Coolant Pump and Sump

9/18 HP, 6.7-14 KW, 2-Speed Motor

Wired 3, Phase 60 Cycle, AC Voltage

Overall Size: 182" L-R x 40" F-B x 53" H
