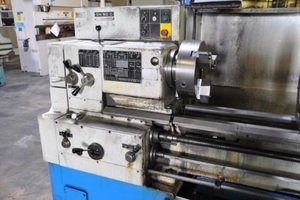

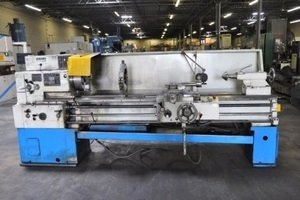

20" X 80" TOS GAP BED LATHE
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $13,500.00
Stock # 12157
Serial # 08005020990418 New 1999 Model # SN50C
Swing Over Ways: 20"
Swing Over Cross Slide: 10-3/4"
Swing in Gap: Approx. 29"
Distance from Spindle Nose to End of Gap: 13"
(24) Spindle Speeds: 22.4 to 2000 RPM
Spindle Nose: D1-6
Spindle Bore: 2-3/16"
Feeds: .002 to .195 TPR
Inch Threading: 1 to 52 TPI
Metric Threads: .5 to 40 TPMM
Quill in Tailstock: 2-3/4" Dia.
Quill Travel: 7"
#5 MT in Quill
EQUIPPED WITH:
12-3/4" 3-Jaw Chuck with 2-Piece Jaws
10" Roller Steady Rest & Follow Rest
Full Length Rear Splash Guard
(1) Bull Nose Center
10 HP Motor, Wired 3 Phase, 60 Cycle, 220 Volts
Overall Size: 12' L x 50" W x 5' H
