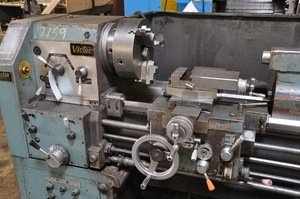

20" X 100" VICTOR GAP BED LATHE
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $12,500.00
Stock # 12159
Serial # 712064 Model # S20100G
Swing Over Ways: 20"
Swing Over Cross Slide: 11"
Swing in Gap: Approx. 28"
Spindle Nose to End of Gap: 8"
(16) Spindle Speeds: 31 to 1500 RPM
Spindle Hole: 3-1/4"
Spindle Nose: D1-8
EQUIPPED WITH:
2-1/2" Diameter Quill in Tailstock with #4 MT
Inch/Metric Threading
12" 3-Jaw Chuck
9" & 4-1/2" Roller Steady Rests
Full Length Rear Splash Guard
10 HP Motor, Wired 3 Phase, 60 Cycle, 220 Volts
Overall Machine Size: 141" L x 48" W x 50" H
