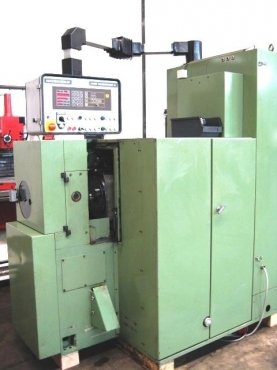

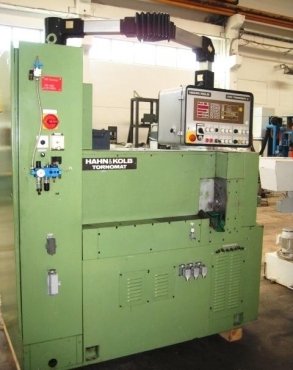

TORNOMAT machines are polygon turning machines for the generation of flats and profiles on turned parts, forgings and castings. Slots and grooves can also be produced.

Because of the high economy for all series productions, they are the perfect alternative to milling, broaching and slotting.

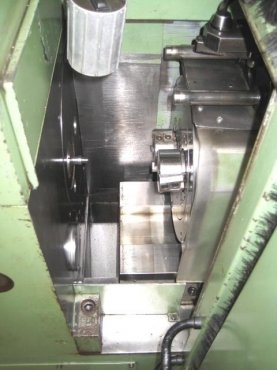

2 clamping stations allow loading and unloading during machining time either manually or automatically with a loading system.

A better cut division and reduced cutting time as well as the compensation of cutting forces can be achieved by simultaneous operation of 2 cutter heads.

Simultaneously, additional operations like chamfering, deburring, boring, spot facing etc. can be performed.

Range of parts for TORNOMAT 2:
3-36 mm (hexagon A/F)
3-29 mm (square A/F)

-
