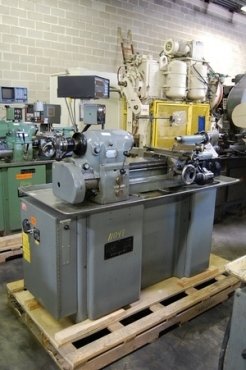

HARDINGE HLV-H PRECISION LATHE
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $8,950.00

Stock # 11049
Serial # HLV-H-4441 New 1970 Model # HLV-H

Spindle Nose: Hardinge Taper
Spindle Capacity: 1-1/16" with Round Type 5C Collets (No Collets)
Variable Spindle Speeds: 125 to 3,000 RPM
Hole Through Spindle: 1-1/4"
Hole Thru Collet Draw Tube: 1-1/8"
Swing Over Bed: 11"
Swing Over Carriage: 9"
Swing Over Cross Slide: 6"
Distance Between Centers: 18" Maximum
Compound Slide Travel: 3"
Carriage Power Feed Range: 5/16 to 7 IPM Variable
Cross Slide Power Feed Range: 3/16 to 4 IPM Variable
Tailstock Spindle Diameter: 1-3/8"
Tailstock Quill Taper: #2 Morse Taper
Inch Threading Range in Gearbox: (27) 11 to 108 Threads Per Inch

EQUIPPED WITH:
Indicator Carriage Stop Bracket (No Indicator)
Spindle Speed Change Via Electric Motor and Control Switch
Variable Power Feed to Carriage and Cross Slide
Full Length Lead Screw and Half Nut
DC Power Feed Motor with Rheostat Control
Built in Carriage Lubrication System
Standard Tailstock with #2 Morse Taper Quill
Hardened and Ground Bed Ways in Good Condition

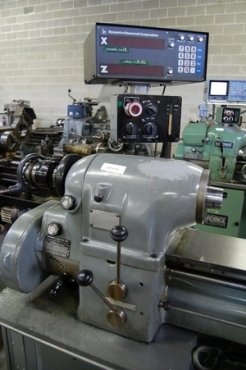

Dynamics Research Corp. 2-Axis Digital Readout with Input Features
Metric (Only) Graduated Dials for Carriage, Cross Slide, Top Compound and Tailstock

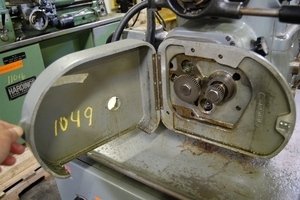

(2) End Quadrant Gears (Not Complete)
(2) Adjustable Carriage Feed Stops
Hand Lever Collet System
1/10 HP Gusher Coolant Pump and Piping, 550 Volts ONLY
.5-1 HP 2 Speed Motor, Wired for 3 Phase, 60 Hz, 550 Volts ONLY
Overall Size: 70" L-R x 40" F-B x 65" High x 1,700 Lbs.
