Description:

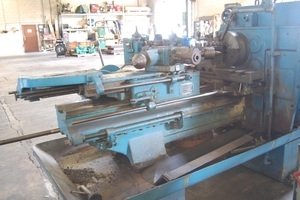

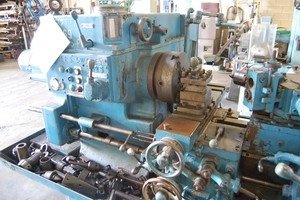

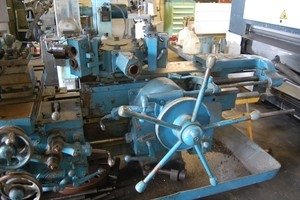

#5 WARNER & SWASEY SLIDING GAP BED TURRET LATHE
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $7,500.00
Stock # 12180-P
Serial # 2119631 New 1965 Model # M2250, Lot # 63
Swing Over Ways: 20"
Swing Over Carriage: 10-1/4"
Swing in Gap: 31-1/2"
Gap Bed Will Slide Back: Approx. 20"
Max. Distance Chuck to Turret, Bed Closed: Approx. 28"
Max. Distance Chuck to Turret, Bed Open: Approx. 47"
Spindle Speeds: 25 to 1556 RPM
Spindle Hole: 2-7/8"
Spindle Nose: A1-8
(6) Carriage Feeds: .004 to .045 TPR
(6) Cross Slide Feeds: .003 to .027 TPR
(6) Turret Feeds: .005 to .048 TPR
Turret Stroke: 12"
EQUIPPED WITH:

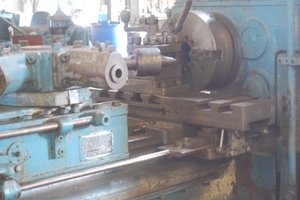

12" Cushman 3-Jaw Chuck (No Hard Top Jaws)
5-1/2" Square Turret Tool Post
6-Position Rotary Turret Type Stops to Carriage & Turret
Lead on Threading to Carriage & Turret
Taper Attachment to Carriage
(2) Adjustable Slide Tools, (3) Long Flanges & (1) Short Flange on Turret
(8) Threading Leads for Turret & (1) for Carriage
Coolant
20/10 HP Motor, Wired for 3 Phase, 60 Cycle, 440 Volts
Overall Dimensions: 140" L x 62" W x 80" H
