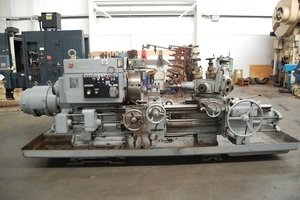

3A WARNER & SWASEY SADDLE TYPE TURRET LATHE
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $29,500.00
Stock # 12204
Serial # 176290 New 1959 Lot # 28 Model # M3500 Square Head
Swing Over Bed: 23-1/2" Max.
Swing Over Carriage: 18" Max.
Spindle Hole: 6-1/4"
Spindle Nose: A-1-15"
(32) Spindle Speeds: 12 to 851 RPM, Hydraulic Preselect
(16) Carriage/Cross Slide Feeds: .005" to .167"
Longitudinal; .0025" to .082" Cross
(16) Saddle Feeds: .005" to .167" Longitudinal;
.0096" to .096" Per Rev. Cross
Distance Spindle to Turret Face: 59" Max.
Length Turned: 43" Max.
Cross Slide Travel: 15-1/2"
Carriage Longitudinal Travel: 51"
Turret Travel: 51"
EQUIPPED WITH:

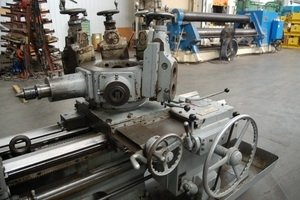

4-Way Turret Tool Post
Cross Sliding Hexagon Turret
21" 3-Jaw Chuck with 2-Piece Chuck Jaws (No Hard Top Jaws)
6-1/4" Chuck Thru Hole
Adjustable Powered Chuck Wrench with Internal & External Setting
2-Speed Motor with High-Low Gear Range
Lead On Threading Gear Box with Carriage Half Nut (Half Nut Parts Missing)
Hardened & Ground Bedways (Very Good Condition)
Spindle Inching (Jog)
4-Way Rapid Traverse to Carriage/Cross Slide
Rapid Traverse to Saddle
(1) Long and (1) Short Flanged Type Turret Tool Holder
(4) M1830 Warner Swasey 2-Hole Slide Tools
(1) Live Center with Turret Bushings
Rear of Spindle Tube is Threaded
Hard Way Covers (Covers Missing at Rear of Saddle)
Hydraulic Spindle Braking
Index able Stops for Saddle Turret
Automatic Lubrication System
Chip Pan with Coolant Pump & Piping (Not Original OEM Pump)
MISSING - Saddle Pilot Bar and Bracket
60/30 HP 2-Speed Motor, 75 FL Amps
3 HP, 230/460 Volts Power Chuck Wrench Motor
Wired for 3 Phase, 60 Cycle, 440 Volts Only
Overall Dimensions: 177" Long x 74" Wide x 72" High x 16,600 Lbs.
Machine is in Good Physical and Running Condition
