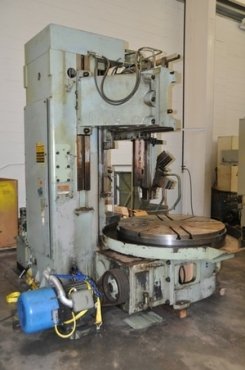

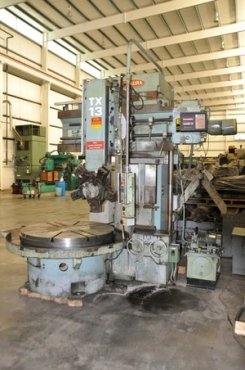

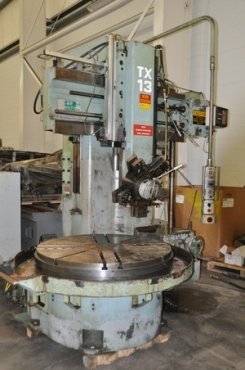

49" SHIBAURA TOSHIBA OPEN SIDE VERTICAL TURRET LATHE
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $79,500.00

Stock # 12093-P
Serial # 320163 New 1981 Model # TX-13

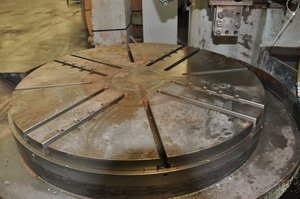

Table Diameter: 49.2"
Maximum Swing: 63"
Maximum Turning Height: 41.3"
Horizontal Travel of Rail Head: 3.9" to 31.5"
Vertical Travel of Turret Ram: 29.5"
Swivel Angle of Rail Head: +/- 30 Degrees
Vertical Travel of Cross Rail: 23.6"
Maximum Table Load: 11,000 Lbs.
Maximum Table Torque: 11,600 Ft./Lbs.
Maximum Cutting Force of Rail Head: 4,410 Lbs.
(12) Table Speeds: 4.5 to 200 RPM
(12) Feed Rates: .003 to .140 Inch/Rev.
Rapid Traverse of Rail Head: 125 IPM
Traverse Speed of Cross Rail: 16.1 IPM
EQUIPPED WITH:
4-Jaw Chuck (No Chuck Jaws)

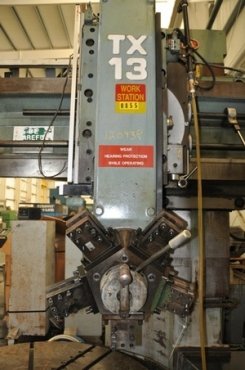

5-Position Turret

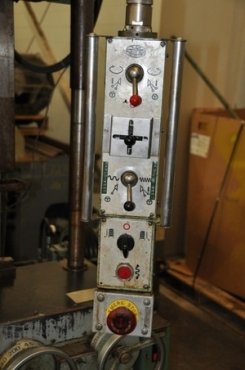

Pendant Control

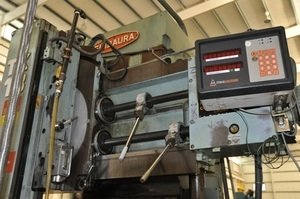

2-Axis Anilam Mini Wizard DRO
Operator Platform, Ladder and Guarding
Manuals
Hydraulic System
Coolant System
Coolant Skimmer
Note: Machine is Equipped with Threading Option but Would Require Change
Gears that are Missing. Gears Would Need to be Purchased by Buyer.
(16) Threads with Required Change Gears: 3 to 24 TPI
24/30 HP Main Motor
Wired for 3 Phase, 60 Cycle, 230/460 Volts
Motor is Floor Mounted
SHIPPING DIMENSIONS:
Main Machine: 125" L-R x 91" F-B x 113" H
Operator Platform and Ladder: 100" L-R x 60" F-B x 60" H
Hydraulic System: 22" L-R x 19" F-B x 32" H
Coolant Skimmer: 27" L-R x 18" F-B x 27" H
Coolant and Parts on Pallet: 45" L-R x 48" F-B x 30" H
Pallet of Guarding: 48" L-R x 48" F-B x 48" H
Main Motor: 34" L-R x 20" F-B x 20" H
