MAKINO A55E CNC HORIZONTAL MACHINING CENTER
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $149,500.00
Stock # 12101-P
Serial # 524 New 12/2002 Model # A55E
Note: Inch Dimensions are Converted from Metric
Longitudinal Travel (X-Axis): 22.05" (560 mm)
Vertical Travel (Y-Axis): 22.05" (560 mm)
Spindle Travel (Z-Axis): 23.6" (600 mm)
Center of Spindle to Table Top: 3.15" to 25.19" (80 to 640 mm)
Spindle Nose Face to Center of Pallet: 0 to 26.34" (0 to 670 mm)
Max. Work Piece Size: 24.8" Dia. x 39.37" High (630 x 1000 mm)
Pallet Dimensions: 15.7" x 15.7" (400 x 400 mm)
Max. Pallet Load: 1100 Lbs. (500 kg)
Number of Pallets: 2
Degree of Pallet Indexing: ?
Feed Rate, All Axes: 1968 IPM Max.
IPM Rapid Traverse, All Axes: 3307 IPM
Minimum Feed Cut Unit: 0.001 MM
Spindle Speed Range: 50 to 20,000 RPM
Spindle Taper: HSK/A63
Spindle Horsepower: 25 HP
Number of Tool Stations: 60 Tool Magazine
Max. Tool Dia. with Adjacent Pocket Empty: 6.69"
Max. Tool Diameter with Adjacent Pocket Full: 2.75"
Max. Tool Length & Weight: 16.53" x 17.63 Lbs.
Machine Timers Show the Following:
Power: 6300.x Over 56687.x
Auto: 9303.x Over 29385.x
Spindle: 3412.x Over 23989.x
EQUIPPED WITH:

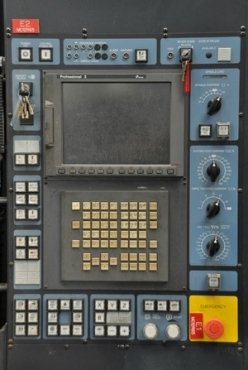

Makino Professional 3 with Geometric Intelligent CNC Control
Fanuc Drives and Control System
3 and 4-Axis Contouring Machining Modes that are M Code Selected
Thru Spindle Coolant
Rigid Tapping
Spindle Cooler System
Mist Collector with Mounting Bracket
Blum Automatic Tool Length Measuring System
Data Server Capable but NOT Included
Glass Scales X-Y-Z
(53) Assorted Tool Holders Including a Touch Probe Head
Machine Operation, Maintenance and Schematic Manuals
Linear Guide Way Machine
Removable Coolant/Chip Conveyor System on Casters
Compressed Air Required for Machine Operation
Kuraco Aero Stokes Oil Mist Collector Unit
Model ASST-203LL, Inlet Size 200 mm, 2.2 kw Motor, 200-220Volt, 3 Phase
Automatic Work Piece Measuring with Tool Probe
65 KVA Makino Dry Transformer, Multi Tap 218.5 to 483 Volt Input x 208 Volt Output
SMC Compressed Air Dryer Unit, Model IDF60
Kanto Seiki Oilmatic Hydraulic/Oil Cooler System on Casters
Machine is Presently Wired for 3 Phase, 60 Hz, 200-208 Volts
MACHINE COMPONENT DIMENSIONS:
Machine: 184" Long x 84" F-B x 122-1/2" High on 4" Blocks x 20,000 Lbs.
Coolant System: 67" x 72" x 67" High x ? Lbs.
Hydraulic System: 37" x 40" x 80" High x ? Lbs.
Transformer: 19" x 28" x 25" High x ? Lbs.
Mist Collector on Stand: 26" x 31" x 61" High x ? Lbs.
Air Dryer: 16" x 26" x 25" High x ? Lbs.
Specifications:
MAKINO A55E CNC HORIZONTAL MACHINING CENTER
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $149,500.00
Stock # 12101-P
Serial # 524 New 12/2002 Model # A55E
Note: Inch Dimensions are Converted from Metric
Longitudinal Travel (X-Axis): 22.05" (560 mm)
Vertical Travel (Y-Axis): 22.05" (560 mm)
Spindle Travel (Z-Axis): 23.6" (600 mm)
Center of Spindle to Table Top: 3.15" to 25.19" (80 to 640 mm)
Spindle Nose Face to Center of Pallet: 0 to 26.34" (0 to 670 mm)
Max. Work Piece Size: 24.8" Dia. x 39.37" High (630 x 1000 mm)
Pallet Dimensions: 15.7" x 15.7" (400 x 400 mm)
Max. Pallet Load: 1100 Lbs. (500 kg)
Number of Pallets: 2
Degree of Pallet Indexing: ?
Feed Rate, All Axes: 1968 IPM Max.
IPM Rapid Traverse, All Axes: 3307 IPM
Minimum Feed Cut Unit: 0.001 MM
Spindle Speed Range: 50 to 20,000 RPM
Spindle Taper: HSK/A63
Spindle Horsepower: 25 HP
Number of Tool Stations: 60 Tool Magazine
Max. Tool Dia. with Adjacent Pocket Empty: 6.69"
Max. Tool Diameter with Adjacent Pocket Full: 2.75"
Max. Tool Length & Weight: 16.53" x 17.63 Lbs.
Machine Timers Show the Following:
Power: 6300.x Over 56687.x
Auto: 9303.x Over 29385.x
Spindle: 3412.x Over 23989.x
EQUIPPED WITH:
Makino Professional 3 with Geometric Intelligent CNC Control
Fanuc Drives and Control System
3 and 4-Axis Contouring Machining Modes that are M Code Selected
Thru Spindle Coolant
Rigid Tapping
Spindle Cooler System
Mist Collector with Mounting Bracket
Blum Automatic Tool Length Measuring System
Data Server Capable but NOT Included
Glass Scales X-Y-Z
(53) Assorted Tool Holders Including a Touch Probe Head
Machine Operation, Maintenance and Schematic Manuals
Linear Guide Way Machine
Removable Coolant/Chip Conveyor System on Casters
Compressed Air Required for Machine Operation
Kuraco Aero Stokes Oil Mist Collector Unit
Model ASST-203LL, Inlet Size 200 mm, 2.2 kw Motor, 200-220Volt, 3 Phase
Automatic Work Piece Measuring with Tool Probe
65 KVA Makino Dry Transformer, Multi Tap 218.5 to 483 Volt Input x 208 Volt Output
SMC Compressed Air Dryer Unit, Model IDF60
Kanto Seiki Oilmatic Hydraulic/Oil Cooler System on Casters
Machine is Presently Wired for 3 Phase, 60 Hz, 200-208 Volts
MACHINE COMPONENT DIMENSIONS:
Machine: 184" Long x 84" F-B x 122-1/2" High on 4" Blocks x 20,000 Lbs.
Coolant System: 67" x 72" x 67" High x ? Lbs.
Hydraulic System: 37" x 40" x 80" High x ? Lbs.
Transformer: 19" x 28" x 25" High x ? Lbs.
Mist Collector on Stand: 26" x 31" x 61" High x ? Lbs.
Air Dryer: 16" x 26" x 25" High x ? Lbs.
Dimensions:
183" X 76" X 111"
Weight:
18,960 LBS
