Description:

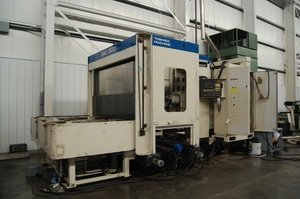

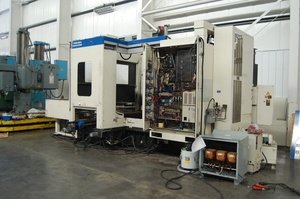

TOSHIBA/SHIBAURA 3-AXIS HORIZONTAL MACHINING CENTER
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $79,500.00
Stock # 12178
Serial # 212860 New 10/1998 Model # BMC-800

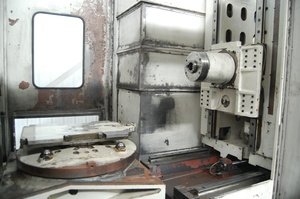

(2) 31-1/2" x 31-1/2" Pallets with (5) T-Slots on 6-1/4" Centers
Travels: 49.2" X, 39.3" Y & 35'4" Z
1 Degree Pallet Indexing
Spindle Speeds: 15 to 829 RPM in Low Range
830 to 5000 RPM in High Range
Pallet Load Capacity: 440 Lbs.
Spindle Taper: Cat 50
Rapid Traverse Rate: 708 IPM
Feed Rate: .04 to 393 IPM
Jogging Feed: 78 IPM
60-Position Tool Changer
Maximum Tool Weight: 55 Lbs.
Maximum Tool Length: 21.7"
Maximum Tool Diameter (All Pots Full): 4.9"
& 9.8" with Adjacent Pots Empty

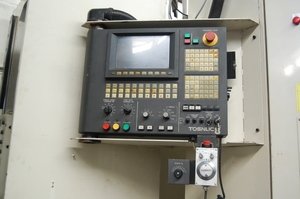

Tosnoc 888 CNC Control with RS232 Port
NSK Auto Lube System to Spindle
Showa Auto Lube System to Ways & Screws

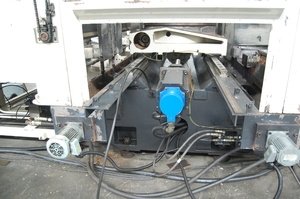

Tanaka Combination Chip Conveyor & Coolant System
External Flood Coolant
Full Sheet Metal Enclosure
Chip Auger in Machine Base
Yuken Hydraulic System
Mitsushita Oil Temperature Regulator
30 HP Spindle Drive Motor, Wired 3 Phase, 60 Cycle, 220 Volts
Machine Manuals, Programming Manuals & Electrical Schematics
New Spare Spindle
Shipping Brackets
Approx. Floor Space Required when Assembled: 21' L x 15' W x 134" High
Shipping Dimensions of Main Machine: 15' L x 8' W x 118" H x 28,500 Lbs.
Pallet Changer: 102" L x 6' W x 46" High
Coolant/Chip Conveyor: 13' L x 4' W x 6' High
Free Standing Tool Changer: 103" L x 30" W x 115" High x 5,000 Lbs.
Specifications:
TOSHIBA/SHIBAURA 3-AXIS HORIZONTAL MACHINING CENTER
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $79,500.00
Stock # 12178
Serial # 212860 New 10/1998 Model # BMC-800
(2) 31-1/2" x 31-1/2" Pallets with (5) T-Slots on 6-1/4" Centers
Travels: 49.2" X, 39.3" Y & 35.4" Z
1 Degree Pallet Indexing
Spindle Speeds: 15 to 829 RPM in Low Range
830 to 5000 RPM in High Range
Pallet Load Capacity: 4400 Lbs.
Spindle Taper: Cat 50
Rapid Traverse Rate: 708 IPM
Feed Rate: .04 to 393 IPM
Jogging Feed: 78 IPM
60-Position Tool Changer
Maximum Tool Weight: 55 Lbs.
Maximum Tool Length: 21.7"
Maximum Tool Diameter (All Pots Full): 4.9"
& 9.8" with Adjacent Pots Empty
Tosnoc 888 CNC Control with RS232 Port
NSK Auto Lube System to Spindle
Showa Auto Lube System to Ways & Screws
Tanaka Combination Chip Conveyor & Coolant System
External Flood Coolant
Full Sheet Metal Enclosure
Chip Auger in Machine Base
Yuken Hydraulic System
Mitsushita Oil Temperature Regulator
30 HP Spindle Drive Motor, Wired 3 Phase, 60 Cycle, 220 Volts
Machine Manuals, Programming Manuals & Electrical Schematics
New Spare Spindle
Shipping Brackets
Approx. Floor Space Required when Assembled: 21' L x 15' W x 134" High
Shipping Dimensions of Main Machine: 15' L x 8' W x 118" H x 28,500 Lbs.
Pallet Changer: 102" L x 6' W x 46" High
Coolant/Chip Conveyor: 13' L x 4' W x 6' High
Free Standing Tool Changer: 103" L x 30" W x 115" High x 5,000 Lbs.
