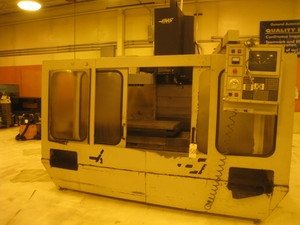

HAAS VF-3 CNC 3-AXIS VERTICAL MACHINING CENTER
General Specifications

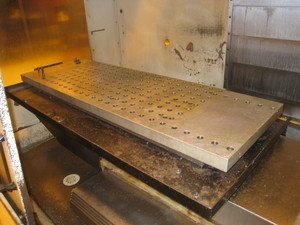

Travels X40" Y20" Z 25" Table
Width18"
Length48"
Max. weight on table 3,500 lbs
T-slots width .625"
T-Slots center distance 3.15" Spindle
Taper size CT40
Speeds50 to 7,500 RPM
Ratios1:1.25 High, 3.2:1 Low
Bearings ABEC class 7
Bearing lubrication air / oil injection
Rapid feeds, X, Y, Z 500 IPM
Weight (est) 12,500 lbs Overall dimensions 118"Wx96"FBx102.5"H
Motor Specifications
15 HP Spindle drive motor
3 HP Axis motors
Equipped With
Haas 32 bit CNC controls with CRT screen
20 Position automatic tool changer
2-Speed gear box
Floppy disk
Rigid tap
Serial Number
2419 Year
1993 Location
PROSPECT HEIGHTS, IL
Specifications:
HAAS VF-3 CNC 3-AXIS VERTICAL MACHINING CENTER
General Specifications
Travels X40" Y20" Z 25" Table
Width18"
Length48"
Max. weight on table 3,500 lbs
T-slots width .625"
T-Slots center distance 3.15" Spindle
Taper size CT40
Speeds50 to 7,500 RPM
Ratios1:1.25 High, 3.2:1 Low
Bearings ABEC class 7
Bearing lubrication air / oil injection
Rapid feeds, X, Y, Z 500 IPM
Weight (est) 12,500 lbs Overall dimensions 118"Wx96"FBx102.5"H
Motor Specifications
15 HP Spindle drive motor
3 HP Axis motors
Equipped With
Haas 32 bit CNC controls with CRT screen
20 Position automatic tool changer
2-Speed gear box
Floppy disk
Rigid tap
Serial Number
2419 Year
1993 Location
PROSPECT HEIGHTS, IL
