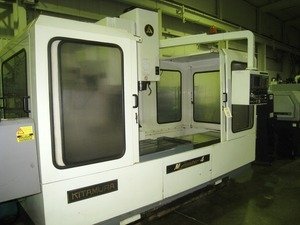

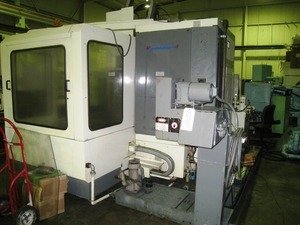

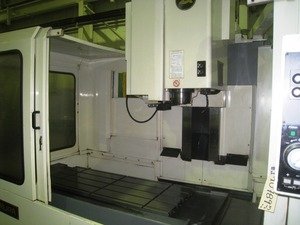

KITAMURA MYCENTER 4 3-AXIS CNC VERTICAL MACHINING CENTER

SERIAL NUMBER 30574 NEW 1994

KITAMURA MYCENTER 4 3-AXIS CNC VERTICAL MACHINING CENTER

SERIAL NUMBER 30574 NEW 1994

GENERAL SPECIFICATIONS:

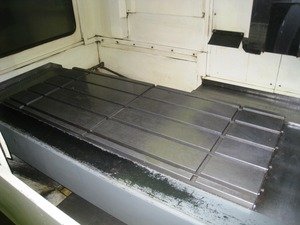

Table size 22.4" x 55.1"
Max. Table load (evenly distrib) 2,200 lbs Spindle nose to table top 6.5"- 29"
Column slideway to table center 12" - 34.3"
X Axis travel 44.3"
Y Axis travel 22.2"
Z Axis travel 22.5"
Rapid traverse rate X & Y Axes 945 IPM
Rapid traverse rate Z axis 630 IPM
Cutting feed rate all axes 0.04-394 IPM

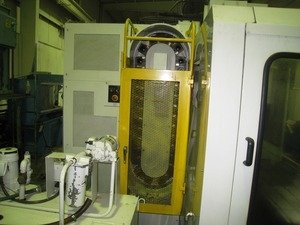

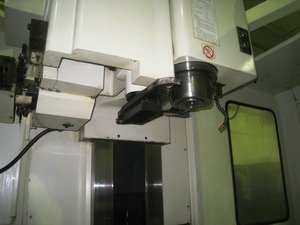

Spindle speed (2 speed geared) 20-6,000 RPM Spindle taper Cat 40 Spindle motor 20 HP Tool changer capacity 30 Stations Tool change time (tool to tool) 1.7 Seconds Max. Tool weight 22 lbs Aprox. floor dimensions (with chip) 174"x124"x124"
Approx. weight 21,000 lbs

EQUIPPED WITH:
Yasnac CNC controls
RS-232C port interface for DNC operation Rigid tapping (synchonous/solid tapping) Spindle chiller (spindle oil cooling system) Left side discharge lift-up type chip conveyor Standard coolant system with tank & pump Fully enclosed guards *Hardened & Ground Box ways & geared spindle*


PRICE: PROSPECT HEIGHTS, IL

140.2" X 113.4"
