Description:

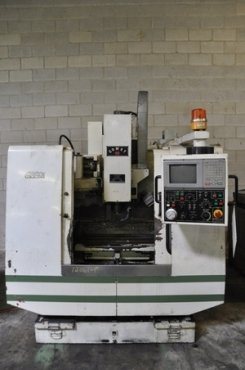

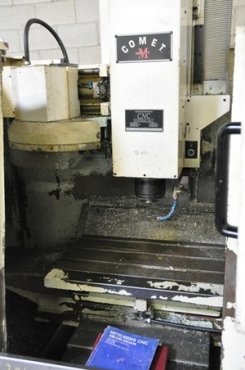

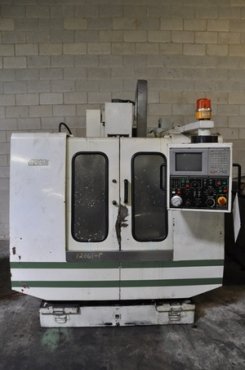

MIGHTY COMET VERTICAL MACHINING CENTER
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $15,500.00
Stock # 12061-P
Serial # 950428-1555 New 3/1995 Model # MVC-500P
Control Serial # M5780880251

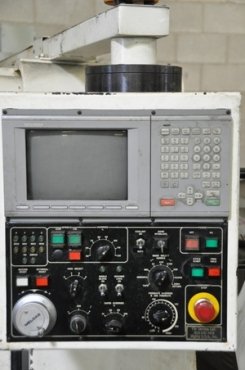

Mitsubishi Meldas 520A CNC Control
Table Size: 16" x 32" (360 x 650 mm)
Maximum Table Load: 750 Lbs. (300 KG)
Travels: 20" X, 15-3/4" Y, 15-3/4" Z (510 x 400 x 400 mm)
Distance Spindle Nose to Table: 4-3/4" to 20-1/2" (120-520 mm)
Distance Spindle Center to Column: 15-15/16" (405 mm)
Spindle Taper: BT40
Spindle Speeds: 60 to 8000 RPM
Cutting Feed Rate: .039 to 275 IPM (1-7000 mm)
Rapid Traverse Rate: 629 IPM (16000 mm/min)
Maximum Tool Weight: 13 Lbs. (6 KG)
Maximum Tool Size: 3.3" Dia. x 7-7/8" Long (85 x 200 mm)
Random Tool Change Selection
Approx. Tool Change Time: 8 Seconds
Requires 92 PSI of Compressed Air for Operation
16-Tool Vertical Carousel Type Tool Changer on Left Side of Head
EQUIPPED WITH:
(4) Assorted Collet Type Tool Holders & (1) Endmill Holder
Machine is 4th Axis Ready But NO 4th Drive is Installed
Air Conditioned Control
Rigid Tapping
Box Style Gibbed Hardways
Brushless High Torque Motors
Machine Work Light
Coolant Pump & Pan System (No Chip Conveyor)
Full Work Area Enclosure Guard
Hard Way Covers
25 Pin Female RS232 Port
Programming & Operation Manuals with Parameter List (2 Books)
Mitsubishi AC Servo Drives
Work Area Access Doors on Each End of Work Enclosure
Spindle Motor: 10 HP (30 Minutes)
Wired for 220 Volt Operation, 50/60 Hz, 3 Phase
Machine Overall Size: 72" L-R x 94" F-B x 97" High (On Floor) x 8,000 Lbs.
Coolant Pan: 54" x 61" x 14" High on Skid x Est. 500 Lbs
